VC Verification IP for MIPI M-PHY

Synopsys VC Verification IP for MIPI M-PHY provides a comprehensive set of protocol, methodology, verification and productivity features, enabling users to achieve rapid verification of M-PHY links operating in high speed and low speed modes.

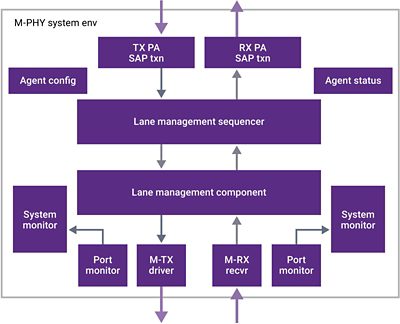

MIPI M-PHY VC Verification IP

Protocol Features

  • Supports MIPI ALLIANCE specification for M-PHY version 3.0.r6 – 26 July 2013
  • M-PHY Layer (L 1.0) Features
    • Interfaces
      • SERIAL-SYS and PWM signaling
      • RMMI – controller and PHY
  • M-PORT LM Layer (L1.5) Features
    • CTRL and DATA SAP Interface
    • TYPE_I and TYPE_II MODULE
    • HS and LS GEARS
    • Configurable number of lanes
    • Supports asymmetrical lanes between TxSubLink and RxSubLink
    • Lane alignment at symbol boundary
    • Lane splitting and merging
    • Configurable number of frames
    • FILLER insertion
    • Lane-to-Lane skew
  • M-PORT LM layer system monitor
    • Configure VIP as MPHY model
    • Interface with protocol adaptor layer
    • Independent port/channel for CTRL and DATA SAPs
    • All capability and configuration attributes
    • LS – HS mode change
    • HS - LS mode change
    • Gear change
    • External/internal SYNC support
    • Automatic FILLER insertion
    • User specific INITIAL state to start the simulation (other than DISABLED)
