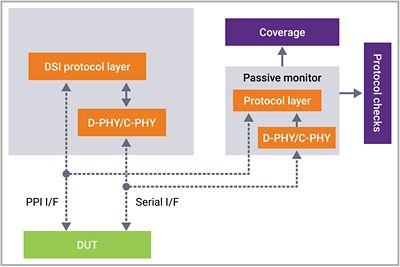

Architecture and Key Features
Specifications
- DSI-2 v2.0,1.1, DSEv1.1
- DPHY 3.0, 2.5, 2.1
- CPHY 2.1, 2.0
DUT Types/Topology: Host and Device
Key VIP Features
- Dual DSI, DSI Host, DSI Device, four virtual channels
- Specification linked Functional coverages
- Scoreboard, callbacks and error injection
Debug and Analysis
- Verdi based protocol and performance analysis
- Protocol checks at each layer
- Debug ports and trace files
- Transaction log, Verbosity Messages
Key Protocol Features
- Protocol Layer:
- DCS command, generic commands and Video Mode
- Short and Long packet structures, multiple high Speed (HS) packets per transmission
- Video transmission in burst and non-burst modes
- 16/18/24/30/36 RGB pixel formats in video mode
- Normal as well as interleaved data streams
- ECC generation, checksum (CRC) generation and checking, error detection and reporting
- DSC compression and decompression
- Scrambling mode command
- SEP, PENP Data types, packed pixel stream-20bit
- Physical Layer:
- D-PHY & C-PHY Serial and Parallel (PPI) Interface
- One to four PHY data lanes and one clock lane
- High Speed Transmission in D-PHY and C-PHY
- Escape Mode Support in D-PHY and C-PHY
Test Suites / Groups Features
- Supports DUT as DSI Device Controller
- Tests targeting Protocol layer and Physical layer
