Verification IP for HBM

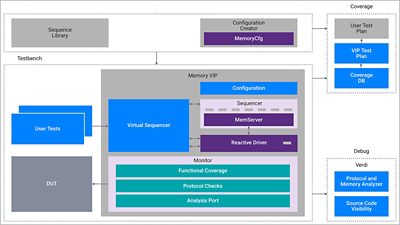

Synopsys® Verification IP for HBM provides a comprehensive set of protocol, methodology, verification and productivity features, enabling users to achieve rapid verification of HBM based designs.
Memory Model Certification
Synopsys provides a comprehensive set of DRAM and Flash Memory VIP that support the latest ratified and draft specifications from standards organizations such as JEDEC, ONFi, SD, and SPI. Synopsys’ VIP team works closely with leading memory vendors to certify 100% compatibility with their manufactured parts. Synopsys Memory VIP is used by memory controller and PHY IP design teams for verification sign off using run time and random JEDEC, and vendor part selection, protocol, and timing checks, and functional coverage. The early adoption and collaboration with leading memory vendors, SoC market makers, and industry leading IP teams certify the quality of Synopsys Memory VIP.
Highlights
- Native SystemVerilog/UVM
- Runs natively on all major simulators
- Runtime JEDEC and vendor part selection
- Verification plan and coverage
- Built-in protocol checks
- Verdi® protocol-aware debug and performance analyzer
- Back door memory access
- Bypass, fast-memory initialization
- Trace files and debug ports
- Multi channel environment
- Error injection and exceptions
Features
HBM3
+
All commands including refresh management commands
All Test instructions
All HBM3 trainings:
- DCA/DCM
- Wdqs2ck training
- Loopback Test Modec45
Data skew and Data bus inversion
Command and Data parity
All mode register support covering all settings
Other features:
- Optimized refresh
- Delayed refresh rate change
- Adaptive Refresh management (ARFM)
- WDQS Oscillator
- Error Check & Scrub
- Self-repair
- Mode register configuration via backdoor and via MR DUMPSET Command
HBM2e/2
+
All commands:
- MRS, ACT, WR, RD, PRE, REF
- PDE-PDX, SRE-SRX
All Test instructions
Loopback Test Modes:
- AWORD/DWORD Write MISR
- AWORD/DWORD Write Register Mode
- DWORD Read Register Mode
- DWORD Read LFSR Mode
- AWORD/DWORD Write LFSR Compare Mode
Data Bus inversion and Data Masking
Command and Data parity
All mode register support covering all settings
Other features:
- Target Row Refresh
- Mode register configuration via backdoor and via MR DUMPSET Command
Clock Jitter
RDQS Jitter
RDQS Duty cycle adjustment
Callbacks for data corruption
Static and dynamic reconfiguration for timing and configuration settings
Data Eye damage
Board delay modelling
Skew Support (twdqs2dq_i and twdqs2dq_o)
Functional, checker and timing coverage
Is_valid checkers
Hierarchal Verification Plan
Tested with vendor part numbers
Analysis port for score boarding
Verdi protocol Analyzer and Performance Analyzer
