HBM Performance Verification Made Easy

VIP Expert

Oct 01, 2019 / 2 min read

HBM2E (High Bandwidth Memory) is a high-performance 3D-stacked DRAM used in high-performance computing and graphic accelerators. It uses less power but posts higher bandwidth than graphics cards relying on DDR4 or GDDR5 memory. Validating the performance and utilization of memory is a big challenge for users due to complex structure of SoC and the subsystem attached to it such as memory subsystem, interconnect bus, and processor.

Synopsys’ Verdi Performance Analyzer provides a solution. This blog will provide insight into how Verdi Performance Analyzer natively integrated with Synopsys VIP can be used to measure key performance metrics like number of commands, count of page empty scenarios that occur in a test. All of these metrics can be used for performance benchmarking.

Memory Transaction Flow

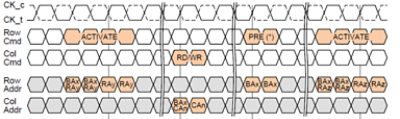

The basic memory access flow can be described as opening a bank using an Activate command, followed by Writing or Reading from various addresses in the bank, and finally closing the bank using a precharge command.

HBM performance verification made easy

Figure 1: HBM Memory Transaction

Verdi Performance Analyzer

The number of cmd metric is categorized as single value metric and displayed in the tool as shown below.

HBM performance verification for advanced memory systems

In ‘page empty scenario’, we have two types of questions that can be answered by the tool: 1- How many scenarios exist? 2- What is the latency for each of them?

To answer question 1, single value metrics are shown by the tool.

HBM performance verification for efficient memory systems

The answer to question 2 requires multi-valued metrics and is displayed as bar chart.

HBM performance verification for high-performance memory systems

Metrics like latency between commands, bandwidth, bus idle time and various scenarios of page-empty, page-miss, page-hit latencies are also important to be captured and can be used in benchmarking. You can read a more detailed performance analysis for HBM here: https://www.synopsys.com/cgi-bin/verification/dsdla/pdfr1.cgi?file=hbm-vip-wp.pdf

To learn more about Synopsys Verdi and VIP solutions, please visit synopsys.com/verification.
