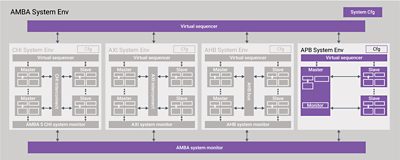

Synopsys Verification IP (VIP) for Arm® AMBA® APB™ provides a comprehensive set of protocol, methodology, verification, and productivity features, enabling users to achieve accelerated verification closure of Arm AMBA based designs supporting APB D and E/APB4/APB3/APB2.
Highlights
- Native SystemVerilog/Verilog with UVM
- Includes primary, secondary, monitor
- Runs natively on all major simulators
- Built-in UVM sequence library
- Verdi protocol aware debug
Key Features
AXI Interconnect Test Suites Available
- Support for APB D and E/APB4/APB3/APB2
- APB2 features:
- Primary initiates transfers on the Peripheral Bus
- Primary supports Write, Read, and Idle transactions
- Primaryr supports maximum of 16 slave devices
- Socondary memory response modeled by sequences
- APB3 features:
- Secondary supports wait states using PREADY signal
- Secondary supports error response using PSLVERR signal
- APB4 features:
- Primary supports write strobe using PSTRB signal
- Trace Data Transfer (Valid, ready signaling)
