X-values, often referred to as "unknowns," are one of the most challenging aspects of digital circuit simulation, especially in low-power designs. X-values can arise from various sources, such as uninitialized flip-flops, unconnected inputs, and asynchronous or glitch-prone signals. Understanding the significance of X-values is crucial for achieving verification closure in low-power simulations.
- X-Values and Their Impact: X-values are neither '0' nor '1'; they represent uncertainty in the digital state of a signal. If not handled correctly, X-values can lead to erroneous simulation results and potentially mask real design issues.
- Propagation of X-Values: X-values can propagate through the circuit, creating a ripple effect that may cause unexpected behavior. This propagation is often challenging to trace, making it a significant concern in low-power design verification.
Low-Power Design Techniques
To achieve low-power objectives, designers employ various techniques that can introduce X-values into the circuit. Some of the most common low-power design techniques include:
- Clock Gating: Clock gating involves disabling clock signals to specific circuit elements when they are not needed. However, improper implementation can introduce X-values during clock domain crossing.

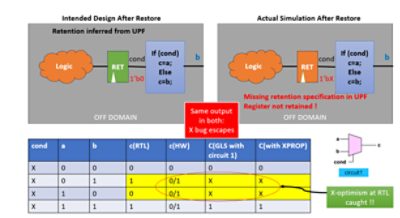

- Power Gating/Power Shut Off: Power gating or power shut off (PSO) allows entire blocks or subsystems to be turned off when not in use. This can introduce X-values when transitioning between power states.
- Voltage Scaling: Changing the supply voltage of a circuit can lead to issues related to X-values, especially when signals cross voltage domains.
