About Compute Express Link

Synopsys Verification IP (VIP) for CXL provides verification of Design implementations based on CXL specifications which can be used in SoCs and System Level Desings to accelerate verification closure. Synopsys VIP provides support for various CXL protocols- CXL.io, CXL.cache, CXL.mem, enabling verification for all design types- Type 1 – CXL.io + CXL.cache, Type 2 – CXL.io + CXL.mem + CXL.cache, and Type 3 – CXL.io + CXL.mem.

Key Benefits

Native Integration Icon | Synopsys VIP for CXL

Native SystemVerilog/UVM

Development Icon | Synopsys VIP for CXL

Source Code Test Suites Available

Validation Icon | Synopsys VIP for CXL

Built-in
Protocol Checks

Chip Icon | Synopsys VIP for CXL

Complete Subsystem Verification Solution

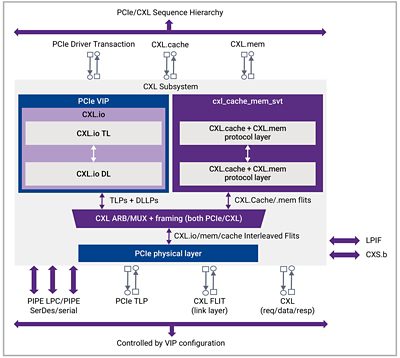

CS1155726996, CS357178473_VIP for Compute Express Link Datasheet

Highlights

  • Native System Verilog/UVM
  • Source code test
  • Built-in protocol checks
  • Verification plan and coverage
  • Verdi protocol-aware debug
  • Runs on all major simulators

Category

Feature

Specification Version

CXL 1.1, CXL 2.0, CXL 3.0, CXL IDE, CXL CXS.b, CXL LPIF 1.0, PCIe Base- 5.0/6.0, PIPE- 5.2/6.1

DUT Configuration

HOST, Device

Protocol Support

CXL.io, CXL.cache, CXL.mem, PCIe Only

Interface

Serial PIPE, SERDES, CXL over CXS ULL, CXL Over CXS LLL

Device Type

ü  Type 1 – CXL.io + CXL.cache

ü  Type 2 – CXL.io + CXL.mem + CXL.cache

ü  Type 3 – CXL.io + CXL.mem

Topology

PCIe TLMs at TL/DL, CXL.io/mem/cache TLM, CXL Flit TLM - CXL Req/ Data/Resp TLM, Logical PHY Interface (LPIF) v 1.1, PCIe LPC, PIPE SerDes Architecture, Serial

Link Speeds

64 GT/s, 32 GT/s and degraded mode of 16 GT/s and 8 GT/s

Link Width

Native Width (x16, x8, and x4) and degraded width (x2, x1)

Security

IDE, DOE

Flit Support

256B standard, 256B Lopt, 68B, and all other flit types supported for each layer

IO/Cache/Mem

All types of IO, Cache and Mem Flows, Back-Invalidation Host, Device Bias mode, Retry flow, Viral and Poison, QoS telemetry

ARB/MUX

All Power Saving states, Weighted Round Robin, Arbitration Bypass mode

Registers

Configuration Space Registers, Memory Mapped Registers

Flex Bus

Alternate Protocol Negotiation, Framing Error Handling, Synch Header Bypass

Initialization and Enumeration

CXL 1.1, 2.0 and 3.0 enumeration, Link Layer Initialization, Bypass Enumeration

Analysis

Protocol Analyzer, Scoreboard, Protocol Checks at each level, Functional Coverage

Simulator

Support all Major Simulators

Methodology

Native SystemVerilog/UVM
