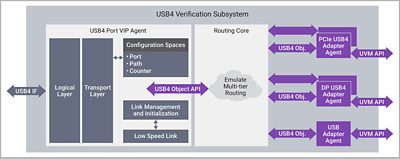

Architecture and Key Features
Specifications: USB4 V2, V1
Interfaces: PIPE 6/5/4/3 and Serial Interface Support
DUT Types/Topology: USB4 Subsystem, Router (Host/Device), PHY, Lane Adaptor and Retimer Cable/On-Board)
Key VIP Features
- Specification linked Functional coverages
- Dynamic Switching between Asymmetric & Symmetric modes
- USB 4.0 Stack – Logical, Transport, Configuration & Host Adapter Layer
- Extensive Error Injection and Sequence Collections
Debug and Analysis
- Router Path statistics
- Trace files and Verbose Controlled Logs
- Debug Ports in Waveform Dumps
- Advanced Debug mechanisms through predefined Switches
Key Protocol Features
- Adapters and Adapter Interface – USB, PCIe and Display Port
- Routing Function – BW Management, Flow Control and packet routing
- Multi-Port and Multi-Protocol Verification Testbench
- SideBand Interface
- Elaborate Programing Interface
- Inter/Intra Domain Scenarios
- TMU Support
Test Suites / Groups Features
- High Level of Automation Support provided with less worries about maintenance
- Testbench control provided through both compile time and run time defines
- VIP Configurations, prebuilt robust and exhaustive set of sequences and open-source tests
- Advanced Coverage Model with End-to-End Scoreboards
- Full Flexibility to user to extend existing's tests as per their custom requirements
- Plug‑and‑Play Framework for IP‑Level Verification and Testbench Migration from IP to SoC
