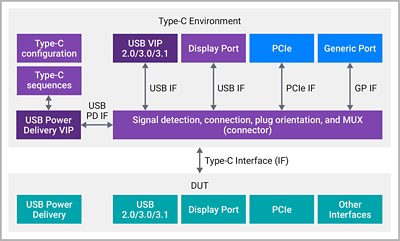

Architecture and Key Features
Specifications: USB PD 3.1/3.0/2.0/1.3/1.1+ECNs
DUT Types/Topology: Cable, Receptacle, Power Delivery Source and Sink
Key VIP Features
- Plug/Receptacle/Cable Mode
- Analogue Module available with configurable Resistor and Voltage values
- Alternate Mode, Auxiliary Mode, Support for 3rd Party Protocols
Debug and Analysis
- Protocol Analyzer with Unified Debug Environment
- Trace files and Verbose Controlled Logs
- Debug Ports in Waveform Dumps
Key Protocol Features
- Power Negotiation with UFP/Cable Plug
- Power Role Swap/Fast Role Swap, Data Role Swap, Vconn Swap
- Vendor Defined Messages (VDMs) - Structured/Unstructured
- Control/Data/Extended Messages – All
- Power Defined Objects - Message Exchange
- Encoding/Decoding - 4b/5b
- Reset - Hard Reset/ Soft Reset/ Cable Reset
- BIST Testing and BIST Patterns
- Chunking Support
- Response/Request Policy Request
Test Suites / Groups Features
- Covers both directed and constrained random tests
- DFP/UFP/CP, UVM IEEE support
- Tailor Made for Testbench Migration from IP level to SoC level & capabilities to add Custom sequences
