Definition

A 3D-IC is a three-dimensional integrated circuit (IC) built by vertically stacking different chips or wafers together into a single package. Within the 3D-IC package, the device is interconnected using through-silicon vias (TSVs) or hybrid bonding.

Why Three-Dimensional Integrated Circuits (3D-ICs)?

In 2D ICs, each die is packaged separately and laid out on a printed circuit board (PCB). Multiple dies in the same packages are then connected using conductive wire paths. Stacking multiple dies atop each other in a single package takes less space than if those dies were placed side by side. Shorter distance between stacked dies allows faster data exchange from one known good die to another, using less energy.

This approach offers several advantages over traditional 2D-IC design, including increased performance, reduced power consumption, and a smaller form factor. 3D-IC design technology allows heterogeneous integration, more efficient use of space, and improved electrical performance compared to traditional 2D-ICs.

3D-ICs use silicon interposers and TSVs for better connectivity among different IPs. A silicon interposer is a thin wafer of silicon that is used in 2.5D and 3D-IC design to connect multiple dies or chips in a single package. It acts as a substrate on which dies are placed and connected using fine-pitch vertical TSVs and microbumps. This allows for better heat dissipation, reduced power consumption, higher density, and improved electrical performance compared to traditional 2D-ICs.

Data transfer to and from stacked dies takes place through TSVs integrated in the bottom die. These TSVs are physical pillars running vertically made up of conductive material such as copper. Bonding stacked dies into a single package instead of a multiple package on a PCB increases I/O density by 100x. The energy-per-bit transfer can be reduced to 30x with the latest technology.

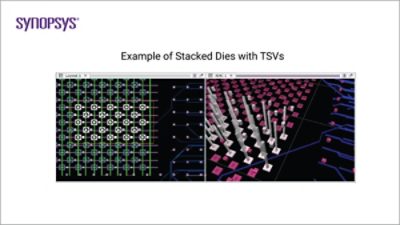

Example of stacked dies with TSVs | Synopsys


Innovate Faster with Synopsys Multi-Die Solution eBook

Multi-Die Start Guide

This guide provides essential information for a successful multi-die design. It covers the advantages and motivating factors, as well as key considerations and guidelines for new projects.


The Benefits of 3D-IC

With the slowing of Moore’s law, packing more functionality into a single die is not always the best way to develop the next generation of semiconductor devices. 3D-ICs offer a viable and valuable alternative, delivering at performance, power, and footprint benefits through the vertical stacking of silicon wafers or dies into a singly packaged device. Benefits include:

  • Reduced Cost and Footprint: Increasing design sizes (both in terms of functionality and densities) are causing major cost and yield problems and expanding development cycles. From a cost perspective, a large system with different parts has various sweet spots in terms of silicon implementation. Rather than having the entire chip at the most complex and/or expensive technology node, heterogeneous integration allows the use of the ‘right’ node for different parts of the system. This reserves the use of advanced/expensive nodes for only the critical parts of the system and less expensive nodes for the less critical parts.
  • Higher Bandwidth: When you think of large, complex SoC, typically the first optimization considered is area. Silicon designers want to integrate as much functionality into the chip and deliver as high performance as possible. But then there are always the required power and thermal envelopes, particularly critical in applications such as mobile, wearable AR, and IoT (although also increasingly important in areas such as high-performance computing in a data center when overall energy consumption is prioritized as well). Implementing 3D structures enables designers to continue to add functionality to the product, without exceeding the footprint and height constraints and, at the same time, lowering silicon costs.
  • Lower Power Consumption: As the need for lower power consumption surges, smaller package sizes have been increasing in demand. 3D-ICs can yield a solution with greater capacity (gates and memory) that could possibly fit on one die in the most advanced technology node available. Vertical stacking provides shorter, faster interconnects that reduce power consumption.
  • Heterogeneous Integration: Using multiple heterogeneous dies provides flexibility, since different manufacturing processes, technology nodes and even base technologies can be intermixed. Existing chips can be reused without being redesigned for incorporation into a single die, another form of risk reduction. In addition, it provides the opportunity to target multiple end-market applications through reuse.

The Benefits of 3DIC for Better Connectivity at Reduced Power

Types of Package (2D/3D) No of IOs/mm2 Data Transfer Power (pJ/bit)
Wire Bond (2D) <10 10
Flip Chip Bump (2D) <100 1.5
Micro Bump (2D) <1000 0.5
TSVs (through-silicon vias) (3D <10000 0.1
Hybrid bond (3D) Up to 1,000,000 0.05

Ideal Applications for 3D-ICs

3D-ICs are ideal for all kind of chips that target more transistors, less power, or small area. A multitude of different chip segments have different advantages from using 3D-IC technology and 3D-ICs are finding increasing acceptance in some of the most demanding semiconductor applications.

The compact footprint is valuable for mobile devices, internet of things (IoT) and other applications where space is at a premium. The capacity and flexibility are ideal for compute-intensive applications such as high-performance computing (HPC), data centers, cloud computing, artificial intelligence (AI), and machine learning (ML).

The chart below shows the growing segments benefiting from 3D-IC technology:

  3DIC Benefits
Segment Less Power High Performance Smaller Size More Memory More Bandwidth
Mobile
High Performance Compute
AR/VR (XR)
Artificial Intelligence
Networking
IoT

Design Challenges of 3D-ICs

There are several multiphysics challenges in 3D-IC design, including heat transfer, electromigration, stress and strain, and thermal expansion. These challenges arise due to the complex and interconnected nature of 3D-ICs, in which multiple dies are stacked on top of each other and connected using TSVs and microbumps.

Thermal expansion is also a challenge in 3D-IC design. As the temperature of an IC changes, different materials used in the IC will expand at different rates, causing stresses and warpage that can affect its performance and reliability. Heat transfer can further complicate the temperature distribution in the 3D-IC design. Due to the high density of transistors and other components, heat transfer gets difficult in 3D-ICs. Most of the heat is trapped in the system, which contributes to the increased temperature. This phenomenon is called self-heating. The 3D-IC constitutes billions of components that are connected through long interconnect wires. Joule heating resulting from these long connections is another major problem area that contributes to overall temperature increase. These heat sources must be monitored and analyzed when designing 3D-ICs to ensure reliable performance.

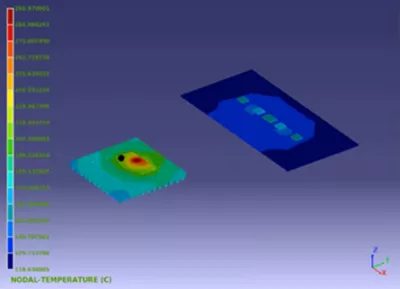

Thermal distribution in multi-die 3D-IC system

3D-IC and Synopsys

3DIC Compiler

Synopsys 3DIC Compiler is the electronic design automation (EDA) industry’s only unified platform for end-to-end multi-die design and integration within one package. It provides a single graphical user environment with 3D visualization, supporting the exploration, design, implementation, validation, and signoff of 3D-ICs. It is built on the Synopsys Fusion Design Platform™ SoC-scale IC design common data model, providing scalability in capacity and performance. 3DIC Compiler enables hundreds of thousands of inter-die interconnects, which traditional IC packaging tools cannot deliver. It offers a full set of automated features along with power integrity, as well as thermal and noise-aware optimization that minimizes the number of design iterations.

Benefits of this technology include:

  • A holistic approach to multi-die integration, for an optimal system-in-a-package solution
  • Powerful 3D viewing of the unified platform, providing an intuitive environment and shortening overall integration time
  • Seamless integration of Ansys’ silicon-package-PCB technology for system-level signal integrity, power integrity and thermal analysis, enabling faster convergence and reducing the need for iterations



Synopsys IP

Designers are splitting SoCs into multiple dies to improve yield, PPA, and scalability for various use cases such as die splitting, die disaggregation, compute scaling and aggregation of functions. To meet the extensive die and SDRAM connectivity requirements for such multi-die SoCs, SoC designers are using Synopsys’ silicon-proven Synopsys Die-to-Die and HBM IP solutions. The solutions offer low-latency controllers and power-efficient PHYs available on the most advanced FinFET processes, supporting 2.5D or 3D packaging technologies. The die-to-die IP enables reliable 112G XSR and parallel-based HBI links, and the HBM IP allows up to 921 GB/s HBM3 SDRAMs.

Discover 3DIC Compiler

The Industry’s Only Unified Exploration-to-Signoff Platform for 2.5D and 3D Multi-Die Designs
