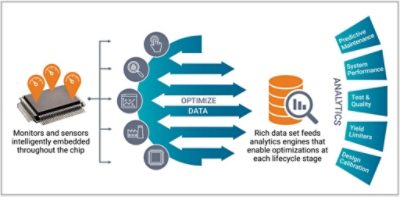

First, non-intrusive monitors and sensors that are embedded throughout each chip gather as much useful data about each chip as possible. This provides visibility into all forms of circuit activity as well as environmental conditions like voltage and temperature.
Automated integration of the monitors and sensors into the RTL or gate-level design is provided through the Synopsys TestMAX™ test integration solution which when coupled with the Fusion Compiler™ RTL-to-GDSII solution for synthesis and physical implementation, ensures the monitors are integrated while maintaining optimal power, performance, and area (PPA) design metrics. The SLM platform links TestMAX™ to Synopsys’ signoff analysis tools for guidance on where to optimally place the monitors and sensors.

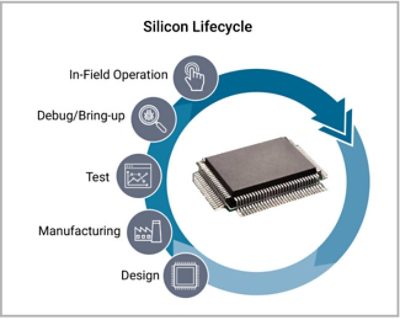

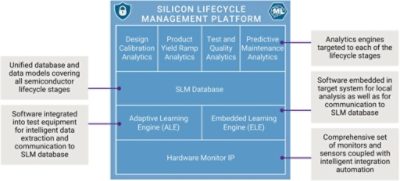

Second, analytics on the chip data obtained from the monitors and sensors enable optimizations at each stage of the semiconductor lifecycle, starting with design implementation, and progressing through manufacturing, production, test, bring-up and culminating with in-field operation. The SLM platform includes several targeted analytics engines. PrimeShield closes the loop on design implementation by leveraging both silicon data-based timing model calibration to minimize required margins as well as advanced analytics to further optimize design PPA, reliability and silicon predictability. The SiliconDash™ semiconductor manufacturing analytics engine and the Yield Explorer™ design yield analysis engine use fab and test data enhanced with monitor and sensor data to optimize manufacturing and test operational efficiencies as well as improve overall yield. The platform also features two additional analytics engines, an Adaptive Learning Engine and an Embedded Learning Engine, that enable optimized test bring-up and introduce self-analysis and predictive maintenance capabilities during the in-field operation of the chip.
