The Strategic Role of Glitch Detection IP in Modern SoCs

As semiconductor technology advances, System-on-Chip (SoC) designs have become increasingly complex, integrating billions of transistors, high-speed interfaces, and security-critical functions. These innovations enable exceptional performance and efficiency but also introduce new challenges, particularly in signal integrity and power stability. Among these, voltage glitches pose significant risks to reliability, security, and energy efficiency, making detection mechanisms a critical component of modern SoC architectures.

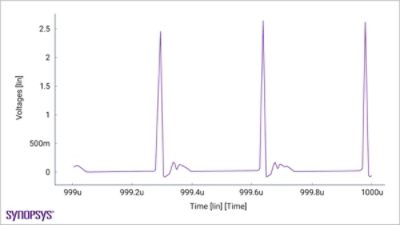

Glitches are unintended, short-duration signal transitions caused by timing mismatches, asynchronous clock domains, or power fluctuations.

Glitches can arise from:

• Clock domain crossings
• Voltage droops or power supply noise
• Power Efficiency and AI Performance
• Electromagnetic interference (EMI)
• Fault injection attacks (in security-sensitive applications)

For AI accelerators, glitches are a primary source of "unproductive power" leading to the following:

• Dynamic Power Drain: Glitches can contribute significantly to a chip's total power consumption and drain battery powered SoCs faster.
• Thermal Impact: The extra switching activity increases heat, which can lead to IR drop issues in the power grid and compromise the longevity of battery-powered devices.

Even a single glitch can lead to:

• Incorrect logic evaluation
• Data corruption
• System crashes
• Exploitable security vulnerabilities

In mission-critical applications—automotive, aerospace, IoT, and data centers—the cost of failure is enormous, making proactive detection essential.

Glitch Detection IP are specialized hardware blocks integrated into SoCs to monitor and flag abnormal voltage behavior on power rails. The necessity of glitch detections will augment the following situations to make the SoC more robust:

• Functional Reliability: Prevents propagation of corrupted data and timing errors, enabling corrective actions such as resets or error handling.
• Security Assurance: Detects fault injection attacks that exploit glitches or droops to bypass security checks, protecting hardware root of trust.
• Power Integrity: Identifies anomalies caused by voltage fluctuations, enabling dynamic voltage and frequency scaling (DVFS) and adaptive clock throttling.
• Debug and Validation: Provides visibility into transient events during silicon bring-up, aiding root-cause analysis and design optimization.

Effective glitch detection IP must deliver:

• Broad Coverage: Monitor multiple critical paths and voltage domains without excessive overhead.
• Fast Response: Nanosecond-level detection to prevent error propagation.
• Configurability: Programmable thresholds for diverse operating conditions.
• Low Power and Area: Essential for cost-sensitive SoCs.
• Integration with Safety Mechanisms: Trigger interrupts, log events, or initiate fail-safe modes.

Integrating PVT IP enables real-time monitoring of voltage anomalies alongside process and temperature data. This unified approach helps:

• Boost Reliability: Instantly flags and responds to voltage glitches, preventing data corruption and system failures.
• Enhance Security: Detects fault injection attempts, supporting hardware protection.
• Enable Predictive Maintenance: Tracks glitch events for analytics, aiding in early detection of aging or stress.
• Support Safety-Critical Applications: Meets the high standards required for automotive, aerospace, and data center environments.

With configurable thresholds and seamless integration, SLM PVT IP with glitch detection is essential for robust, secure, and efficient SoCs.

As SoCs scale in complexity and operate in increasingly hostile environments, detection IP will evolve to:

• AI-Driven Anomaly Detection: Predictive reliability and adaptive tuning.
• Integration with Hardware Security Modules (HSMs): Enhanced protection against sophisticated attacks.
• Distributed Sensing Networks: Localized monitoring across chiplets and 3D IC architectures.
• Real-Time Analytics: For proactive system optimization.

Glitch detection circuit IPs are no longer optional—they are strategic imperatives for ensuring reliability, security, and efficiency in advanced semiconductor designs. By enabling real-time monitoring and adaptive response, these technologies safeguard mission-critical systems and support the next generation of high-performance, energy-efficient SoCs. With configurable thresholds and seamless integration, SLM PVT IP with glitch detection is essential for robust, secure, and efficient SoCs—explore Synopsys PVT IP to strengthen your silicon’s reliability and security.
