What is an Integrated Circuit (IC)?

Integrated circuits are created using photolithography, a process that uses ultraviolet light to print the components onto a single substrate all at once — similar to the way you can make many prints of a photograph from a single negative. The efficiency of printing all the IC’s components together means ICs can be produced more cheaply and reliably than using discrete components. Other benefits of ICs include:

• Extremely small size, so devices can be compact
• High reliability
• High-speed performance
• Low power requirement

The integrated circuit was independently invented by two pioneering engineers in the late 1950s: Jack Kilby of Texas Instruments and Robert Noyce of Fairchild Semiconductor.

• Jack Kilby built the first working IC prototype in 1958 using germanium, which earned him the Nobel Prize in Physics in 2000 for his contribution to technology.
• Robert Noyce developed a practical method for mass-producing ICs using silicon and the planar process, which laid the foundation for the modern semiconductor industry and led to the founding of Intel.

Their combined innovations set the stage for the explosive growth of electronics and computing power that continues today.

Since their creation, integrated circuits have gone through several evolutions to make our devices ever smaller, faster, and cheaper. While the first generation of ICs consisted of only a few components on a single chip, each generation since has prompted exponential leaps in power and economy.

• 1950s: Integrated circuits were introduced with only a few transistors and diodes on one chip.
• 1960s: The introduction of bipolar junction transistors and small- and medium-scale integration made it possible for thousands of transistors to be connected on a single chip.
• 1970s: Large-scale integration and very large-scale integration (VLSI) allowed for chips with tens of thousands, then millions of components, enabling the development of the personal computer and advanced computing systems.
• 2000s: In the early 2000s, ultra-large-scale integration (ULSI) allowed billions of components to be integrated on one substrate.
• Next: The 2.5D and 3D integrated circuit (3D-IC) technologies currently under development will create unparalleled flexibility, propelling another great leap in electronics advancement.

The first IC manufacturers were vertically integrated companies that did all the design and manufacturing steps themselves. This is still the case for some companies like Intel, Samsung, and memory chip manufacturers. But since the 1980s, the “fabless” business model has become the norm in the semiconductor industry.

A fabless IC company does not manufacture the chips they design. Instead, they contract this out to dedicated manufacturing companies that operate fabrication facilities (fabs) shared by many design companies. Industry leaders like Apple, AMD, and NVIDIA are examples of fabless IC design houses. Leading IC manufacturers today include TSMC, Samsung, and GlobalFoundries.

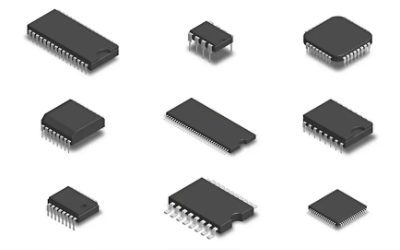

ICs can be classified into different types based on their complexity and purpose. Some common types of ICs include:

• Digital ICs: These are used in devices such as computers and microprocessors. Digital ICs can be used for memory, storing data, or logic. They are economical and easy to design for low-frequency applications.
• Analog ICs: Analog ICs are designed to process continuous signals in which the signal magnitude varies from zero to full supply voltage. These ICs are used to process analog signals such as sound or light. In comparison to digital ICs, they are made of fewer transistors but are more difficult to design. Analog ICs can be used in a wide range of applications, including amplifiers, filters, oscillators, voltage regulators, and power management circuits. They are commonly found in electronic devices such as audio equipment, radio frequency (RF) transceivers, communications, sensors, and medical instruments.
• Mixed-signal ICs: Combining both digital and analog circuits, mixed-signal ICs are used in areas where both types of processing are required, such as screen, sensor, and communications applications in mobile phones, cars, and portable electronics.
• Memory ICs: These ICs are used store data both temporarily or permanently. Examples of memory ICs include random access memory (RAM) and read-only memory (ROM). Memory ICs are among the largest ICs in terms of transistor count and require extremely high-capacity and fast simulation tools.
• Application-Specific Integrated Circuit (ASIC): ASICs are designed to perform a particular task efficiently. It is not a general-purpose IC that can be implemented in most applications but is instead a system-on-chip (SoC) customized to execute a targeted function.

A major new challenge posed by these multi-die packaging technologies is heat dissipation. When you consider that a high-performance computing (HPC) chip can easily consume over 200 watts, it becomes obvious that overheating and thermal management are major limiting factors when you start stacking several of these chips closely together.

By making ICs more efficient in how they connect, 2.5D and 3D technologies are overcoming the scaling challenge that engineers have been tackling since the 1950s: “How do we get more with less?”

The significance of integrated circuits in modern electronics cannot be overstated. Their impact includes:

• Miniaturization: ICs enable the creation of smaller, lighter, and more portable devices by integrating numerous components onto a single chip.
• Cost Efficiency: Automated mass production methods make ICs more affordable than assembling circuits from discrete parts.
• Reliability: Fewer physical connections mean fewer failure points, resulting in longer-lasting devices.
• High Performance: Shorter interconnections and optimized layouts enable faster signal processing and higher speeds.
• Low Power Consumption: Integrated designs use less energy, which is crucial for mobile and battery-powered devices.
• Scalability: Advanced manufacturing techniques allow billions of transistors to fit on a single chip, powering today’s powerful processors and memory devices.
• Consistency: ICs are produced with high precision and uniformity, ensuring consistent quality across devices.

Without ICs, the rapid advancement and widespread accessibility of technology, from consumer electronics to critical medical equipment, would not have been possible.

By enabling engineers to predict the performance of ICs, accurate signoff verification is critical to optimizing the design process for nearly every electronic device. With simulation, designers can evaluate their ICs against several requirements, including power consumption, thermal, and parametric yield.

Synopsys is a global leader in providing electronic design automation (EDA) tools and semiconductor intellectual property (IP) that empower engineers to design, verify, and manufacture integrated circuits with precision and efficiency. Synopsys solutions cover the full IC lifecycle, from concept and simulation to layout, verification, and readiness for manufacturing.
With Synopsys technology, semiconductor companies can:

• Design analog, digital, and mixed-signal ICs using advanced EDA software.
• Verify functionality, performance, power consumption, and security before manufacturing.
• Accelerate time to market with automation and robust verification processes.
• Leverage silicon-proven IP to enhance features and reliability.

As ICs become more complex and essential to virtually every industry, Synopsys remains at the forefront. The company enables innovation in everything from consumer electronics and automotive safety systems to IoT and advanced computing.
