ASIC design, or Application-Specific Integrated Circuit design, is the specialized process of developing integrated circuits (ICs) that are custom-built for a specific application, product, or use case. Unlike general-purpose chips, such as microprocessors or FPGAs (Field Programmable Gate Arrays), ASICs are optimized to perform a predefined function with maximum efficiency, high performance, and low power consumption. The ASIC design process encompasses a series of steps, from conceptualization and architecture planning to physical layout and manufacturing.
ASICs are found in a wide range of electronic products, including smartphones, networking equipment, automotive systems, industrial machinery, and consumer electronics. The demand for ASIC design continues to grow as industries seek greater performance, energy efficiency, and functionality tailored to their unique requirements.
As technology advances, ASIC design has become increasingly complex, requiring sophisticated tools, methodologies, and expertise to meet stringent specifications, regulatory standards, and time-to-market pressures.
Why Choose ASIC Over Other Solutions?
ASICs are the preferred choice when a product requires high performance, low power consumption, small form factor, and high-volume production. If flexibility, rapid prototyping, or low production volume is more important, FPGAs or standard off-the-shelf components may be better options.
Types of ASIC Design
There are two primary methods of ASIC design:
Gate array (semi-custom design)
Full custom design
Semi-custom design is divided into a few groups. The classification of ASICs is shown below:

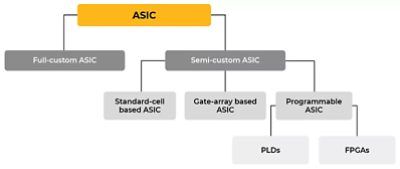

Types of ASICs:
Sometimes, programmable ASICs are considered separate from semi-custom ASICs. Other ASIC classifications are shown below:

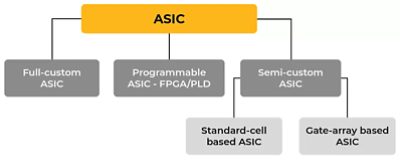

Classification of ASICs:
- Full-custom design: The full-custom method is more complex and costly, but it can do much more than the gate array method. The size of the ASIC decreases significantly as the design incorporates only the necessary gates and electronics, and unused gates are deleted. These ASICs are designed for a specific purpose and support a particular function in the end product.
- Semi-custom ASIC: This approach involves predefining diffused layers, transistors, and other active devices to minimize initial design efforts, which reduces non-recurring engineering costs. The production cycles are significantly shorter because the metallization process is utilized, which is a relatively swift process compared to full custom design. During the final design phase, engineers manipulate specific switches, opening and closing them to guide the chip's behavior according to the desired specifications.
- Standard cell-based ASIC: This type of ASIC uses predesigned logic cells called standard cells, such as gates, multiplexers, and flip-flops. Standard cells are made using full-custom design methodology and serve as basic building blocks for ASIC design, ensuring the same performance and flexibility but reducing time and risk.
- Gate-array based ASIC: In this category of ASIC, transistors, logic gates, and other active devices are created and manufactured on a silicon wafer, while interconnects are not formed during fabrication. The pre-established arrangement of transistors on the gate array is referred to as the base array, and the smallest repetitive element forming the gate array is called the base cell. Several advantages accompany this approach, including a shorter turnaround time, higher logic density, and customization of contact layers.
- Programmable ASIC: This type of ASIC can be programmed at the hardware level after manufacturing. Unlike traditional ASICs, which are custom-designed and fabricated for specific applications, programmable ASICs offer a degree of flexibility and reprogramming. Programmable logic devices (PLDs) and field-programmable gate arrays (FPGAs) are perfect examples of programmable ASICs.
What is the Difference Between ASIC and FPGA?
An ASIC is custom-designed for a specific function and once fabricated, its functionality cannot be changed. In contrast, an FPGA (Field Programmable Gate Array) is a programmable device that can be reconfigured after manufacturing, making it suitable for prototyping and applications that require flexibility. ASICs typically offer better performance, lower power consumption, and reduced size for mass production, while FPGAs are ideal for development and lower volume production.
| Attribute | ASIC | FPGA |
| Functionality | Fixed after fabrication | Reprogrammable after manufacturing |
| Performance | Optimized for specific tasks | General-purpose, lower performance |
| Power Efficiency | Lower power usage | Higher power consumption |
| Use Case | High-volume, application-specific | Prototyping, flexible logic |
| Cost | High upfront cost, low per-unit cost at volume | Low upfront cost, high per-unit cost at volume |
Benefits of ASIC Design
ASIC design offers a host of advantages, especially when compared to general-purpose or programmable logic devices. Here are some key benefits:
- Performance Optimization: ASICs can be tailored to achieve the highest possible performance for a specific application.
- Power Efficiency: Customization allows for minimal power consumption, critical for battery-powered and portable devices.
- Reduced Size and Weight: Integrating multiple functions into a single chip reduces board space and overall product weight.
- Lower Unit Cost (at Scale): Once development costs are covered, high-volume production results in lower per-unit costs compared to off-the-shelf solutions.
- Enhanced Security: Proprietary ASICs are harder to reverse engineer, offering better protection against IP theft.
- Reliability: Purpose-built chips often have fewer failure points and are optimized for the operating environment.
- Extended Product Lifespan: ASICs can be designed for long-term availability and support, ideal for industrial and automotive markets.
Applications of ASICs
ASICs find applications in various industries, each leveraging the technology for unique purposes. Here are some prominent sectors in which ASICs play a pivotal role:
- Consumer electronics: ASICs are omnipresent in consumer electronics, powering devices such as smartphones, digital cameras, and smart TVs. Their ability to provide tailored solutions enhances these gadgets’ overall performance and power efficiency.
- Telecommunications: ASICs are employed in networking equipment, routers, and communication devices. Their custom-designed nature ensures optimal functionality and speed in processing data.
- Automotive industry: ASICs contribute significantly to the automotive industry, in which they are integrated into various systems like engine control units (ECUs), advanced driver-assistance systems (ADAS), and infotainment systems.
- Healthcare: Medical devices, diagnostic equipment, and imaging systems often incorporate ASICs to meet the stringent requirements of precision, reliability, and power efficiency.
How Does ASIC Design Work?
The ASIC design process is a structured and multi-phase journey that transforms an idea into a physical silicon chip. Here’s an overview of the typical ASIC design flow:
1. Specification & Architecture
The process begins with defining the requirements and specifications of the ASIC. This includes the desired functionality, performance targets, power consumption, area constraints, and interface requirements. System architects translate these requirements into a high-level architecture that outlines the major functional blocks and their interconnections.
2. RTL Design & Verification
Once the architecture is defined, design engineers write Register Transfer Level (RTL) code, typically using hardware description languages like Verilog or VHDL or SystemVerilog. This code describes the logical behavior of the ASIC. Verification engineers use simulation and formal verification techniques to ensure the RTL design meets the specifications and is free from functional errors. Achieving coverage closure is also a key verification task, ensuring that all aspects of the design have been thoroughly exercised and validated against the requirements.
3. Synthesis & Implementation
At this stage, the RTL code is synthesized into a gate-level netlist, mapping the logical design onto actual logic gates and flip-flops. Physical design engineers then undertake floorplanning, placement, and routing, strategically organizing circuit elements across the silicon and establishing metal interconnections. Throughout this process, careful attention is given to optimizing power, performance, and area (PPA) to meet design objectives. Additionally, the team proactively manages potential congestion issues to ensure signal integrity and efficient routing, while adhering to stringent timing, power, and area constraints.
4. Design for Test (DFT) & Validation
To facilitate efficient post-silicon testing, designers integrate test structures such as scan chains, built-in self-test (BIST) logic, and other DFT features into the ASIC. This enables comprehensive fault detection and diagnostics during manufacturing. Validation at this stage involves extensive simulations, static timing analysis, and formal verification to ensure that the design meets all functional and operational requirements prior to tape-out.
5. Tape-out & Fabrication
Once the design has successfully passed all verification and validation milestones, the final manufacturing data package—centered around the GDSII (Graphic Data System II) file, along with supporting verification reports and documentation—is prepared and "taped out" to the semiconductor foundry.The ASIC is then fabricated through advanced photolithography and semiconductor processing steps. Following fabrication, the chips undergo rigorous testing and quality assurance procedures before being packaged and integrated into the final product.
How Long Does ASIC Design Take?
The ASIC design process can take anywhere from several months to over a year, depending on the complexity of the chip, the level of verification required, and the availability of design resources. Time-to-market is influenced by factors such as design reuse, IP integration, verification cycles, and manufacturing lead times.
What Are the Main Challenges in ASIC Design?
Key challenges include managing design complexity, meeting stringent performance and power goals, ensuring robust verification, minimizing design bugs, and optimizing yield during fabrication. Additionally, the upfront development costs and risks associated with ASIC design are significant, making careful planning and tool selection critical.
ASIC Design and Synopsys
Synopsys is a global leader in electronic design automation (EDA) tools and semiconductor IP, providing comprehensive solutions that empower companies to design, verify, and manufacture complex ASICs efficiently and accurately. Synopsys offers a full suite of tools covering every phase of the ASIC design flow, including:
- High-performance RTL synthesis and verification platforms
- Advanced physical design and layout tools
- IP libraries for standard functions and interfaces
- Design for test (DFT) and yield optimization solutions
- Security and reliability verification tools
By leveraging Synopsys’ industry-leading EDA tools and expertise, organizations can accelerate ASIC design cycles, improve first-pass silicon success, and reduce overall development costs.
