3D Chips: Socionext Achieves Two Successful Tape-Outs in Just Seven Months

In the race to deliver high-performance, power-efficient chips — especially 3D multi-die designs for AI and high-performance computing (HPC) applications — speed of design and development is critical.

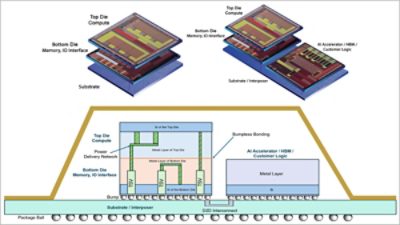

Setting new benchmarks for complexity and speed, Socionext recently achieved two successful tape-outs for a cutting-edge 3DIC chip in just seven months following initial design kickoff. Based on advanced TSMC-SoIC technology, the chip stacks two heterogeneous dies (compute on TSMC N3 and I/O on TSMC N5) in a face-to-face (F2F) configuration.

To accelerate its workflows and overcome significant technical hurdles, Socionext used a full suite of Synopsys IP, electronic design automation (EDA), and cloud solutions.

“You need the very best partners and solutions to deliver 3D multi-die designs in record speed,” said Rajinder Cheema, CTO and executive vice president at Socionext. “Our collaboration with Synopsys and use of their 3D-enabled IP, AI-powered EDA flows, and cloud solutions helped us overcome significant design complexity, achieve multiple tape-outs in just seven months, and set new standards for innovation and time-to-market.”

As the complexity of multi-die designs continues to grow, so too does the need for robust, comprehensive design and verification solutions. Our portfolio of best-in-class IP, powerful EDA tools, and scalable cloud resources helped Socionext accelerate every phase of development.

IP solutions

Our extensive portfolio of silicon-proven IP enabled Socionext to integrate key functionality quickly and reliably. By leveraging pre-validated building blocks, their design team was able to focus on differentiation and innovation, rather than reinventing the wheel for foundational components.

• Socionext used our 3D-enabled IP — including 3DIO, PCIe 6.0, DDR5, Test, and SLM Process, Voltage, and Temperature (PVT) monitor  — to ensure their design adheres to TSMC SoIC requirements.
• Customized for F2F configuration, our PCIe 6.0 and DDR5 IP allowed Socionext to integrate heterogeneous logic, memory, and interface components in a single package while meeting performance, power, and density targets.
• Our 3DIO IP provided 3D die-to-die connectivity and seamless integration with the Synopsys place and route flow.

EDA tools

Socionext leveraged our advanced EDA tools — from architecture exploration and RTL design to physical implementation and signoff — for the tape-outs. These tools are engineered to handle the unique challenges of multi-die and 3DIC architectures, including complex interconnects, power management, and timing closure. Socionext used:

• Fusion Compiler, which offers AI-driven adaptive flows, to automate chiplet design from RTL to GDSII.
• 3DIC Compiler for co-design of the dies and advanced package — from exploration to signoff.
• Ansys — now part of Synopsys — Redhawk-SC for multiphysics analysis with early-stage thermal and infrared (IR) optimization.
• TestMAX DFT for implementation and timely access to test data, with support for the IEEE 1838 standard.

Cloud EDA environment

Verifying intricate 3DIC designs requires significant computational resources. Socionext leveraged the Synopsys Cloud FlexEDA SaaS environment, giving their designers 2,000 on-demand compute cores and multiple terabytes of storage. The cloud-based approach enabled multiple simulations and analyses to be processed concurrently, reduced bottlenecks, and enhanced technical collaboration across teams and geographies — all of which significantly accelerated design closure.

• Following initial exploration, Socionext used Synopsys Cloud FlexEDA services for the implementation of their 3DIC design.
• The ability to scale resources ensured Socionext could meet tight deadlines and allowed for immediate adjustments in response to design challenges.
• Cloud-based resources enabled closer collaboration and higher productivity across Socionext’s architecture, design, and signoff teams.

The Socionext 3DIC chip is poised to make an impact across a range of applications. Its high-performance capabilities and power efficiency make it ideal for AI and HPC workloads, which require massive computational throughput and efficient data handling — often within thermally constrained environments.

Thanks to the advanced integration techniques enabled by TSMC’s SoIC technology and the design optimizations facilitated by our solutions, Socionext’s 3DIC chip delivers the speed and efficiency needed for next-generation neural networks, data analytics, and scientific computing.

The advanced chip also holds promise in the consumer space. From smartphones and wearables to smart home technologies, compact and power-efficient devices are in high demand. The ability to stack dies and optimize them for both size and power consumption means customers can deliver feature-rich products without compromising battery life or form factor.
