Definition
A system on a chip (SoC) is an integrated circuit (IC) that combines all of a system’s essential components onto a single piece of silicon, eliminating the need for separate, bulky system parts. This integration simplifies circuit board design and delivers improved power efficiency and speed without compromising functionality.
Components contained within an SoC can include:
- Data processing units
- Embedded memory
- Graphics processing units (GPUs)
- USB interfaces
- Video and audio processing
In electronics, the priority is always “more performance, less power, and less space.” This is especially critical for portable devices such as tablets and smartphones, where advanced technology must fit within the smallest possible footprint and consume minimal power. By consolidating all necessary elements into a single package, SoCs enable engineers to create devices that are both fast and compact.
Compact SoCs have become indispensable solutions across various markets, ranging from wired applications like data centers, artificial intelligence (AI), and high-performance computing (HPC) to battery-operated devices such as mobile phones and wearables.

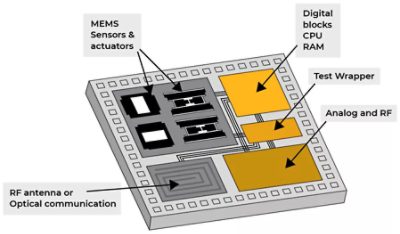

Understanding the Components and Construction of SoCs
As the name implies, system-on-chip contains nearly all the necessary functional circuit blocks for a full system on a single chip. Generally, you will find the following components on any SoC:
- Multiple Cores: A processor with multiple cores in the form of a microcontroller, microprocessor, digital signal processor, or application-specific instruction set processor.
- Memory Capabilities: Memory capabilities such as RAM, ROM, FLASH, EEPROM, and/or cache memory.
- External Interfaces: External interfaces for wired communication protocols such as HDMI, USB4, FireWire, USART, SPI, I²C, or Ethernet.
- Wireless Capabilities: Wireless capabilities such as WiFi or Bluetooth and other radio frequency capabilities.
- GPU: A Graphical Processing Unit (GPU) for accelerating specific tasks.
- Voltage Regulation: Voltage regulators, phase lock loop (PLL) control systems, built-in oscillators, timers, and analog-to-digital (ADC) converters.
- Intrachip Communication: Intrachip communication subsystems for connecting individual circuit blocks, such as Interface busses or newer intercommunication networks known as networks-on-chip (NoC).
- Signal Processing: Digital, analog, and mixed-signal processing circuit blocks for any sensors, actuators, data collection, and data analysis.
- Next-Gen Capabilities: SoC capabilities powering the next generation.
Generally, engineers want to reduce energy waste, save on spending, and further miniaturize devices. With system-on-chip technology, this is possible through advanced integration methods on a single IC.
These compact and versatile chips have powered the rise of smartphones, allowing for incredible power in a small form factor. Similarly, due to their compact and power-efficient qualities, manufacturers are incorporating SoCs into new IoT devices, embedded systems, and even automobiles.
Furthermore, we’ve also seen a shift in SoC technology used in personal computers and laptops to further reduce power consumption and improve performance. Less circuit real estate generally results in less heat generation, less power consumption, and a lower cost of production. This has allowed more efficient device design for heat distribution, minimal latency, and accelerated data transmission.
Because SoCs are highly specialized, they are often applied in individualized tasks. Custom SoCs are now being developed for specific applications such as enhancing machine learning, advanced AI capabilities, and high-performance cloud computing with faster data processing. SoCs can perform multiple calculations as a distributed operation (rather than the limited parallelism offered by traditional CPUs) to further accelerate calculations. For this reason, many companies are now investing in their own development of custom SoCs to support their advanced data and signal processing needs.
The History of SoCs
With smaller devices so common in our everyday lives, it’s hard to imagine a time when SoCs weren’t in everything. But it wasn’t until the 1970s that the concept of fitting an entire system onto a single microchip first became a reality.
- 1970s: According to the Computer History Museum, the first system on a chip appeared in an LCD watch in 1974. Until then, microprocessors had only been standalone chips that required the support of external chips.
- 1980s-90s: Advancements in semiconductor manufacturing technology made it possible to integrate more components on a single chip. Mixed-signal integration allowed chips to process both analog and digital signals.
- 2000-2010s: SoCs began integrating Wi-Fi, Bluetooth, and cellular modems, bringing wireless communications to our mobile devices. The addition of powerful processors and graphics capabilities helped make smartphones a new way of life.
- Present: SoCs are becoming increasingly specialized and are expanding beyond mobile to include automotive systems, wearable devices, industrial automation, and more. New features include artificial intelligence (AI), machine learning (ML), and edge computing.
System on a Chip Applications
Thanks to their ability to be customized for highly specialized requirements, SoCs can be used in a variety of applications, from children’s toys and doorbell cameras to industrial engines. Some SoC uses include:
- Mobile devices: SoCs integrate wireless connectivity and multimedia capabilities in smartphones and tablets.
- Automotive systems: Vehicles of all types use SoCs to power navigation systems, sensor interfaces, infotainment systems, and danger avoidance systems.
- Internet of Things (IoT): Highly efficient in low-power use cases, SoCs are widely used in IoT devices such as wearables and smart home monitors.
- Networking equipment: In routers, switches, and network appliances, SoCs integrate packet processing capabilities, security features, and specialized components for efficient data routing.
- Consumer electronics: SoCs provide graphics processing power and connectivity to a wide range of common multimedia devices, such as gaming consoles and digital media players.
- Industrial applications: SoCs enable real-time processing, connectivity, and interfacing capabilities, contributing to efficient and intelligent industrial solutions.
- Medical devices: SoCs assist in improving patient care by improving the processing power and connectivity of patient monitoring systems, diagnostic equipment, and implantable devices.
SoC Design: Pros and Cons
The integration of multiple components onto a single chip offers numerous benefits. But when determining if an SoC is the right solution for a device, these benefits must be weighed against the challenges of such a complex design.
Advantages of System on a Chip
- Space optimization: SoCs take up less space than multiple discreet components, making smaller device designs possible.
- Power efficiency: Replacement of large components and circuits with SOCs leads to a significant reduction in power consumption and the required PPA (power, performance, and area) metrics can be achieved.
- Cheaper: A single SoC chip is cheaper than the set of multiple, separate chips that would otherwise be needed.
- Reliability: A single SoC has fewer connections and is thus significantly more reliable than a multipart system connected through a substrate.
- Performance: Because the signals can stay on chip, an SoC can achieve higher performance and speed than a multipart solution.
Disadvantages of System on a Chip
- Single point of failure: With all components in a single chip, a failure in one component affects the entire system (which limits upgrades, too).
- Time to market: When compared to off-the-shelf components, designing custom SoCs requires more expertise and specialized tools with increased development time and costs. These higher costs can only be recouped if the market for the SoC is big enough to absorb them.
- Mixed analog/digital: As all the components on an SoC are manufactured with a single process technology, there is no option to use optimal technology for the analog sections. This leads to reduced analog performance and makes SoCs better suited for digital applications.
- Flexibility: An SoC is ideally suited to its intended task but has limited scope to be applied for any other task.
System on a Chip Design Flow
Similar to an integrated circuit, the design workflow for a system on a chip involves several stages to plan, refine, and produce. Each stage requires the collaboration of experts including system architects, design engineers, and manufacturers. The major milestones of the SoC design flow include:
- Specification: Clearly define the desired function of the SoC. What are the applications, performance goals, power limitations, etc.?
- Logical design: Describe the desired behavior in a hardware description language (HDL) and simulate the functional behavior to verify it is correct.
- Logic synthesis: Automatically translate HDL behavioral description into a list of transistor elements and their interconnections, called the “netlist.”
- Physical design: Choose the appropriate transistor components, determine their physical locations on the silicon, and the trajectories of the interconnection wires between them.
- Signoff: Use verification software like RedHawk-SC to analyze and validate the design to ensure proper functionality and performance. Verify that the layout meets all manufacturability requirements. Chips cannot be repaired, so if there is any mistake in the design, all the manufactured chips must be thrown away and the design has to be revised. This is why it’s so important to check and verify before proceeding to manufacturing.
- Tapeout: Generate the final graphic files for creating the photomasks of the layout and send to the manufacturer for production.
- Testing and packaging: Test to confirm the SoC delivers on the specifications and is ready for use. The silicon chip is then encapsulated in a protective package.
SoC Design and Simulation
The demand for smarter, faster electronics in increasingly challenging spaces will continue to drive the need for SoC innovation. As SoCs are becoming more complex to meet market demands, design engineers should follow a formalized approach to designing and validating these chips. Simulation is an important key to creating a successful SoC design that meets the required design and manufacturing specifications. The power delivery network is getting more complex, and low-power concerns shrink the supply voltage. As a result, signing off the design for signal integrity and power integrity is critical.
