Advances in memory standards are driving faster and more power-efficient mobile and connected devices, from smartphones and tablets to ultra-thin laptops and wearables.
One such standard is Low Power Double Data Rate (LPDDR), which plays a crucial role in balancing high performance with energy efficiency. The latest iteration of the standard, LPDDR6, represents a big step forward in memory management. Comparing LPDDR6 to its predecessors, LPDDR5 and LPDDR5X, reveals just how quickly mobile memory technology is evolving — and what these advances mean for next-generation devices.
IP Solutions for Edge AI - A Collection of Articles on Innovations and Best Practices
The role of LPDDR memory
LPDDR acts as the main system memory inside electronic devices. By working hand-in-hand with device processors and other components to store and access frequently used data, it helps keep applications, media, and multitasking features running smoothly. LPDDR is optimized for low power usage, compact footprint, and fast data transfer, making it ideal for portable, battery-powered devices.
LPDDR can integrate with Inline Memory Encryption (IME) modules to ensure data confidentiality — both in-use and when stored in off-chip memory. This is achieved through standards-compliant independent cryptographic support for read and write operations, providing robust protection against unauthorized access.
LPDDR memory is also available as automotive-grade Synchronous Dynamic Random-Access Memory (SDRAM), making it the preferred DRAM solution for automotive applications that require strict compliance with automotive standards.
LPDDR5 and LPDDR5X: the previous benchmarks
LPDDR5 marked a big step up in mobile memory when it was introduced in 2019. It delivered data rates up to 6.4 Gbps with improved energy efficiency (through features such as Dynamic Voltage Scaling) and smarter data handling. These upgrades led to longer battery life and better support for demanding applications like 5G connectivity, high-resolution media, and the initial wave of artificial intelligence (AI).
LPDDR5 also added new reliability features and smarter error handling, helping stabilize performance under complex workloads. As a result, devices using LPDDR5 delivered noticeable gains in both speed and overall user experience compared to devices using previous generations of LPDDR SDRAMs.
Introduced in 2021, LPDDR5X offered increased performance (up to 10.67 Gbps) and minor enhancements to the features of LPDDR5. LPDDR5X SDRAMs represent the vast majority of LPDDR SDRAMs shipping today.
LPDDR6: the next generation
Published in July 2025, the new LPDDR6 specification and compliant SDRAMs deliver even more performance, efficiency, and features — all of which are designed to meet the growing demands of next-generation mobile and connected devices. LPDDR6 offers:
- Faster data rates. LPDDR6 is expected to reach up to 14.4 Gbps, a significant increase from LPDDR5X. This extra speed is essential for power-hungry applications like augmented reality, ultra-high-definition video streaming, advanced AI, and automotive electronics, all of which depend on rapid data processing.
- Wider bandwidth. Using 24-bit channels (up to 96 bits per package with 4 channels total), LPDDR6 effectively doubles LPDDR5X's bandwidth per package. In addition, two 12-bit sub-channels in each channel helps improve latency and access.
- Enhanced power management. LPDDR6 introduces more precise control over voltage and power states. This upgrade helps devices run more efficiently and extends their battery life as a result.
- Improved reliability and error correction. As the speed and footprint of LPDDR rises, so too does the risk of data errors — especially in data centers. LPDDR6 addresses this challenge with enhanced RAS (Reliability, Availability, and Serviceability) capabilities, providing robust error correction via Metadata, Advanced ECC, and Link ECC features. These improvements help minimize system glitches and stabilize device performance.
While LPDDR6 builds on LPDDR5 and LPDDR5X’s foundations, some legacy mechanisms were streamlined or replaced to support higher speeds and tighter power control. For example, earlier voltage scaling and command encoding schemes have been reworked to enable more granular power states and improved signal integrity. These changes mean LPDDR6 prioritizes advanced efficiency and reliability features over older approaches that were optimized for lower data rates.

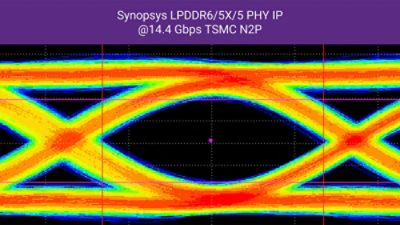

Successful silicon bring-up of Synopsys LPDDR6 IP on 2 nm process
The implications for memory design and mobile devices
The improved performance, efficiency, and features of LPDDR6 will have wide-ranging impacts. From a technical perspective, LPDDR6 introduces a variety of upgrades to memory architecture:
- Signal integrity and bank management. Smarter signaling and improved memory bank management reduce latency and maximize data throughput.
- Ultra-low power modes. New power-saving states allow devices to conserve energy when idle, a big advantage for wearables and Internet of Things (IoT) products that run on small batteries.
- Compatibility. The new specification is engineered for seamless integration with the latest processors and chipsets, making it easier for manufacturers to integrate LPDDR6 into their next-generation devices.
These upgrades will enable the creation of mobile devices that offer:
- Faster, smoother performance. Higher data rates mean apps open quicker, multitasking is more efficient, and device operation is smoother.
- Better battery life. Improved power management reduces energy consumption, allowing devices to run longer between charges.
- Greater system stability. Stronger error correction improves reliability and reduces the risk of crashes and data loss.
- Future-proofing. LPDDR6 enables devices to support future advances in mobile computing, connectivity, and multimedia.
The Impact of LPDDR6 on smartphones, laptops, and wearables
LPDDR6 represents a significant step forward in mobile memory technology, delivering faster speeds, increased capacity, improved reliability, and better energy efficiency.
Leveraging silicon-proven interface IP and verification IP solutions — which have also been successfully validated at 10.667 Gb/s for SDRAM — device manufacturers are already upgrading their flagship smartphones, high-end laptops, and innovative wearables with LPDDR6-based memory.
But the transition from LPDDR5X/5 to LPDDR6 is more than just a technical upgrade — it enables new possibilities in mobile computing. As manufacturers adopt the new standard, users can expect devices that are faster, more reliable, and ready to support the next wave of on-device and cloud-connected experiences.
