World’s First HBM4 IP Test Chip: Early Silicon Validation for Next-Generation AI and HPC

As AI and high-performance computing systems continue to scale, memory bandwidth has become a defining system constraint. Larger models, higher compute density, and increasingly complex multi-die designs demand memory interfaces that deliver extreme bandwidth with tight power and signal-integrity margins. High-Bandwidth Memory (HBM) remains central to meeting these requirements, and the transition to HBM4 represents a critical inflection point.

We are announcing a major industry milestone: the world’s first HBM4 IP test chip, validated with wide-open eyes running at 9.2 Gbps. This achievement goes beyond first silicon. It demonstrates early, end-to-end interoperability between HBM4 logic IP and HBM memory silicon, providing tangible proof that the HBM4 ecosystem is advancing toward production readiness.

Multiple customer adoptions of the Synopsys HBM4 IP are already underway, reflecting strong demand for early access to validated solutions as AI workloads continue to push bandwidth, power, and scalability limits.

At HBM4 speeds, margin is challenged by a combination of channel loss, crosstalk, timing uncertainty, and power noise—particularly in the context of dense interconnects and advanced packaging.

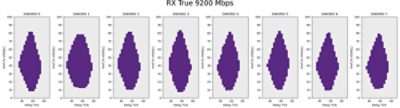

The wide‑open eyes observed on this test chip provide early silicon evidence that:

• Transmitter and receiver architectures are robust at high data rates
• Clocking and timing recovery techniques are effective
• The interface can work with existing interposer technologies

For SoC architects and system designers, this level of silicon‑proven signal integrity significantly reduces uncertainty as they plan next‑generation AI accelerators and HPC platforms.

The HBM4 IP test chip is implemented on a 3 nm process, reflecting the reality that next-generation memory interfaces must scale alongside leading-edge compute nodes. At these geometries, designers face increasing challenges related to analog performance, device variability, and power efficiency.

Demonstrating HBM4 operation on advanced silicon confirms that the IP is not only standards-aligned, but also manufacturable on the nodes that will support future GPUs, AI accelerators, and high-end processors. This early validation is particularly important as HBM4 targets higher bandwidth per pin while maintaining strict power efficiency constraints.

HBM4 is inherently designed for multi-die designs, where compute, memory, and accelerators are integrated using advanced packaging technologies. As monolithic scaling becomes less economical, multi-die designs are rapidly becoming mainstream across AI and HPC designs.

This test chip milestone confirms that the HBM4 IP is ready for such designs. By validating interoperability early, designers can confidently move forward with architectures that rely on high-bandwidth memory connected across interposers and complex package substrates.

Achieving this milestone required close collaboration across IP development teams and memory partners. Early alignment across the ecosystem is essential when bringing up a new interface standard at these speeds and densities.

This successful validation highlights the importance of early silicon testing and cross‑partner collaboration in advancing industry readiness for HBM4.

As AI and HPC systems evolve, memory bandwidth will remain a critical constraint of system performance. HBM4 represents a significant step forward, and early silicon validation is a key enabler for its adoption.

This world’s first HBM4 IP test chip demonstrates Synopsys’ continued commitment to delivering silicon-proven IP solutions that reduce risk and accelerate customer timelines. With validated interoperability, advanced-node implementation, and a clear path to higher data rates, Synopsys’ HBM4 IP is positioned to play a central role in the next generation of high-performance systems.
