What is an Electronics Digital Twin?

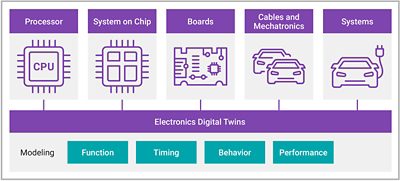

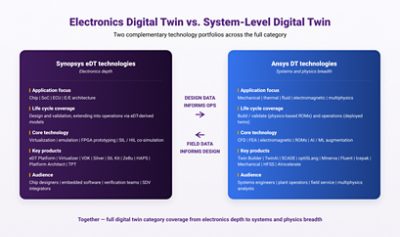

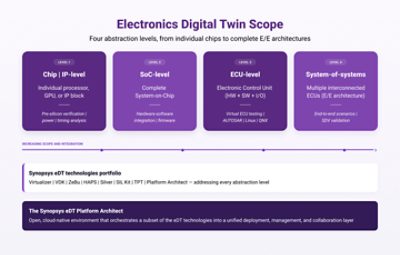

A Digital Twin is a virtual representation of a physical product, system, or process. A Digital Twin is used to gain insights into observed behavior for specific use cases. eDTs extend the broader digital twin concept into the domain of electronic design and development. These digital replicas can model everything from individual chips to complex electronic control units (ECUs) and interconnected systems, capturing not only their functional characteristics but also their interactions with software and the operating environment.

eDTs are particularly valuable for software-driven products across a wide range of industries — automotive, aerospace, industrial, medical, and networking. Many of these industries have traditionally been focused on mechanical engineering and are transforming their offerings with software and electronics.

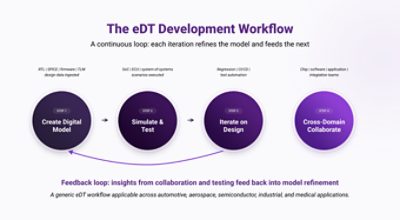

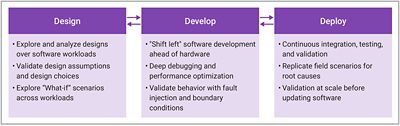

eDTs operate through a seamless interplay of modeling, data integration, simulation, and continuous feedback. Here’s how the process unfolds:

1. Creation of the Digital Model

The journey starts with the creation of a highly accurate digital model of the electronic system. This involves ingesting design data, specifications, hardware descriptions (such as RTL, SPICE models, and PCB layouts), and relevant firmware or software. The model must capture both the logical and physical attributes of the electronics, including signal integrity, power management, thermal behavior, and timing.

2. Advanced Simulation and Scenario Testing

Engineers use the eDT to run simulations under a variety of operating conditions and scenarios. They can inject faults, model hardware-software interactions, and test the impact of environmental variables—all without physical hardware. This is especially critical for safety-critical applications in automotive and aerospace, where physical prototyping can be costly and time-consuming.

3. Continuous Feedback and Optimization

As the physical system operates and evolves, the eDT collects and analyzes performance data. This feedback loop enables proactive identification of potential issues, validation of design changes, and continual optimization. It supports predictive maintenance, firmware updates, and even over-the-air (OTA) upgrades, ensuring that the electronic system remains robust and up to date throughout its lifecycle.

4. Collaboration and Traceability

eDTs enable seamless collaboration both within and across organizations, as well as across domains, connecting hardware, software, and systems engineering teams. Changes and test results are tracked within the digital twin environment, providing full traceability and compliance with industry standards.

Benefits and Real-World Applications of eDTs include:

• Reduce costs by shifting software development, validation, and integration to virtual environments long before hardware is available.
• Achieve faster time to market more reliably by enabling parallel development across software, hardware, and systems engineering, allowing teams to begin integration and testing months earlier.
• Improve quality by helping teams identify and resolve issues far earlier in the lifecycle.
• Accelerate innovation among OEMs, Tier 1 suppliers, semiconductor vendors, and partners.

Synopsys technologies that enable eDTs include:

• Synopsys Electronics Digital Twin (eDT) Platform - An open solution to accelerate the creation, management, deployment, and use of eDTs.
• Synopsys Silver™ - A SiL solution to create and run vECUs.
• Synopsys Virtualizer™ Development Kit (VDK) - An eDT that uses virtual prototypes and software productivity tools to let developers build, test, and debug unmodified production software.
• SIL Kit by Vector and Synopsys - An open-source library designed to connect Software-in-the-Loop (SiL) environments like emulators, virtual machines and simulators
• Synopsys ZeBu® - Emulation solution to enable verification teams and software developers.
• Synopsys HAPS® - Prototyping solution for hardware and software, including at-speed prototyping, to enable semiconductor chip prototyping from IP blocks to complete SoCs
• Synopsys Cloud - A software platform that enables delivery of EDA tools, IP, and infrastructure to enable eDT collaboration through a browser.
• Synopsys TPT - A test automation tool to test and integrate software for Model-in-the-Loop (MiL), SiL, Processor-in-the-Loop (PiL), and Hardware-in-the-Loop (HiL) testing
