As the demand for smarter, faster, and more energy-efficient devices surges across industries, from AI-powered data centers to next-generation vehicles and mobile platforms, the memory backbone must evolve rapidly. LPDDR6 is the latest leap in low-power DRAM technology, engineered to deliver unprecedented bandwidth, robust data integrity, and superior power efficiency. This article explores how future-ready LPDDR6 Verification IP is enabling design verification and reliability for SoC designers with a spotlight on real-world applications, industry trends, and key features that set LPDDR6 Verification IP apart.
Today’s high-performance applications, including advanced AI/ML workloads, autonomous driving systems, and immersive mobile experiences, are pushing memory standards to their limits. Recent studies by MIT, MIT Technology Review show even basic AI tasks can consume up to 16% of a mobile device’s battery, while AI-centric data centers draw 3–10 times more power than traditional setups. LPDDR6 rises to meet these challenges with:
Users apply LPDDR6 to several use cases across many industries, as outlined in Figure 1. Examples include:

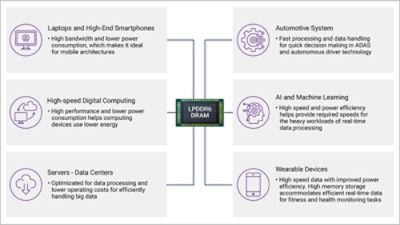

Figure 1. Use cases for LPDDR6 across application domains.
Current LPDDR models such as LPDDR5 and LPDDR5X hold significant market share, approximately 60% and 30% respectively—due to their superior power efficiency, speed, and memory density. LPDDR5X offers a 20% improvement in power efficiency over LPDDR5. These technologies continue to evolve alongside innovations in computing platforms like laptops, desktops, servers, and emerging standards such as LPCAMM2. Despite these advancements, leading semiconductor and memory companies are actively exploring the next generation: LPDDR6. Designed to deliver even higher performance, LPDDR6 will start at speeds of 10.6 Gbps and scale up to 14.4 Gbps, offering significantly greater bandwidth for data-intensive applications. It will also introduce features like Error Correction Support (ECS) and Command/Address (CA) Parity to enhance data integrity, while maintaining high performance with reduced power consumption—making it a key enabler for future-ready systems.
| Features | LPDDR5 | LPDDR5X | LPDDR6 |
|---|---|---|---|
| Max Data Rate | 6400 Mbps | 10667 Mbps | 14400 Mbps |
| IO Width | x8/x16 | x8/x16 | x12 |
| Prefetch | 16n/32n | 16n/32n | 12n/24n |
| Density | 2GB to 32GB | 2GB to 32GB | 4GB to 64GB |
| Banks per channel | 16 | 16 | 16 |
| Fault reporting | NA | NA | Yes, via fault mode register and alert signal |
Figure 2. LPDDR6 Capabilities
When migrating to LPDDR6, designers face challenges primarily around verification of new features and ensuring compliance with JEDEC standards under higher complexity. Key Verification Challenges:

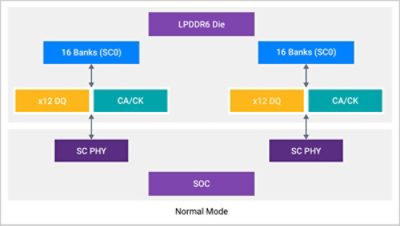

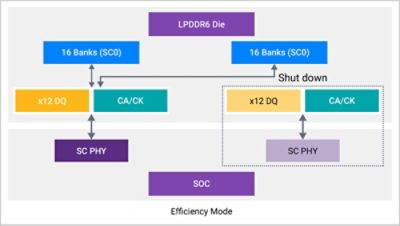

Figure 3. LPDDR6 Operation Modes
Synopsys LPDDR6 Verification IP offers industry-leading solutions for verifying new architectural features, Handling Higher Bandwidth & Speed, and ensuring compliance with JEDEC standards. Key advantages include:
For more information on Synopsys memory VIP, please visit http://synopsys.com/vip
LPDDR6 sets a new benchmark for low-power DRAM, addressing the pressing needs of AI, HPC, automotive, and mobile SoCs. Its advanced features and verification solutions from leaders like Synopsys are paving the way for smarter, faster, and more sustainable computing platforms. As the memory landscape evolves, LPDDR6 Verification IP is a critical enabler for next-gen innovation—ensuring reliability, compliance, and performance across the most demanding applications.
Synopsys VIP is natively integrated with the Synopsys Verdi® Protocol Analyzer debug solution as well as Synopsys Verdi® Performance Analyzer.
Running system-level payload on SoCs requires a faster hardware-based pre-silicon solution. Synopsys transactors, memory models, hybrid and virtual solutions based on Synopsys IP enable various verification and validation use-cases on the industry’s fastest verification hardware, Synopsys ZeBu® emulation and Synopsys HAPS® prototyping systems.
