Fast-Track Design Verification for AI Accelerators, GPUs & HPC Designs with HBM5 Verification IP

The AI revolution has hit a critical inflection point. As foundation models scale from billions to trillions of parameters, memory bandwidth has emerged as the defining constraint limiting innovation. While compute capabilities continue advancing, memory systems struggle to keep pace—creating a performance chasm that threatens to slow AI progress.

HBM5 is a transformative leap in High Bandwidth Memory architecture that doesn't just incrementally improve performance—it fundamentally reimagines how memory systems serve next-generation AI accelerators, GPUs, data centers, and HPC platforms. With bandwidth approaching 8 TB/s per stack and architectural innovations spanning signaling protocols, reliability mechanisms, and testability infrastructure, HBM5 represents the most significant memory evolution in a decade.

Innovation at this scale brings verification challenges that traditional methods cannot fully address. To help teams manage this complexity, Synopsys is working on developing the HBM5 Verification IP, enabling confident validation of advanced memory subsystems, reducing project risk, and accelerating time-to-market for products shaping the next era of computing.

Today's AI workloads present unprecedented challenges:

• Foundation models like GPT-4 and beyond require massive parameter storage and rapid weight updates • Inference engines demand low-latency memory access for real-time decision-making
• Training clusters need sustained bandwidth across distributed memory hierarchies
• Data centers require reliability mechanisms that prevent costly downtime

Traditional memory architectures have reached their physical and economic limits. HBM5 addresses these challenges through a comprehensive redesign that touches every layer of the memory stack.

HBM5 introduces breakthrough innovations across five critical dimensions:

• Quadruple data rate signaling: The transition from double data rate (DDR) to quadruple data rate (QDR) signaling represents a fundamental protocol shift. Referenced to quadrature differential strobes and operating at up to 32 Gb/s per pin, this change delivers roughly 4× the per-pin data rate of HBM4—enabling peak bandwidth of up to 8 TB/s per stack.

HBM5's architectural sophistication introduces verification complexity that spans:

• Protocol validation across QDR signaling, dual command interfaces, and 64 pseudo channels
• Training sequence verification for QSA, RX calibration, and WDQS alignment
• Reliability mechanism testing including ECC, DCRC, CAPAR, ECS, and PRAC • IEEE 1500 infrastructure validation for test, debug, and repair
• Corner case coverage across speed grades, densities, and operational modes
• System-level integration with memory controllers, PHYs, and interconnect fabrics

Traditional verification approaches—manual testbenches, ad-hoc checkers, limited coverage—cannot address this complexity at the scale and velocity modern projects demand.

Synopsys is working on providing an HBM5 verification solution to customers, enabling them to begin verification of next-generation AI, HPC, and advanced memory subsystem designs ahead of silicon availability. By providing early access to comprehensive protocol validation, coverage-driven verification, advanced debug capabilities, and seamless integration into existing verification environments, Synopsys helps customers significantly reduce project risk and accelerate time-to-market for HBM5-based products.

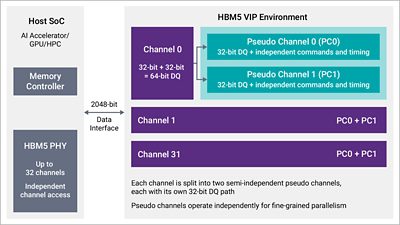

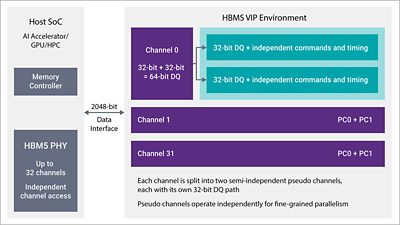

Built on a native SystemVerilog UVM architecture, the solution provides comprehensive protocol validation, functional coverage, checker infrastructure, advanced debug capabilities, and scalable multi-channel verification support. The VIP is designed to verify the complete HBM5 feature set, including channel architecture, initialization flows, mode registers, training procedures, loopback modes, data integrity features, IEEE 1500 infrastructure, ECC, repair mechanisms, and advanced memory operations.

HBM5 is more than a memory upgrade—it is a key enabler of next-generation AI and HPC. As models scale, latency demands shrink, and data centers require greater reliability, HBM5 delivers the bandwidth, capacity, and robustness these systems need.

Realizing HBM5's potential requires equally advanced verification. Synopsys is working on providing an HBM5 verification solution to customers, combining protocol validation, coverage-driven methodology, advanced debug, and system-level integration to help reduce risk and accelerate time-to-market.

Synopsys is partnering with early customers and collaborators to enhance the standard architecture for their next-generation designs, incorporating new features now available with the latest specifications.

Synopsys VIP is natively integrated with the Synopsys Verdi® Protocol Analyzer debug solution as well as Synopsys Verdi® Performance Analyzer. Running system-level payload on SoCs requires a faster hardware-based pre-silicon solution. Synopsys transactors, memory models, hybrid and virtual solutions based on Synopsys IP enable various verification and validation use-cases on the industry's fastest verification hardware, Synopsys ZeBu® emulation and Synopsys HAPS® prototyping systems.
