Reduce Risk and Time-to-Market for DDR6 Designs with Synopsys DDR6 Verification IP

The memory bottleneck is real—and it's getting worse. As AI workloads explode, cloud densities multiply, and data centers scale to unprecedented levels, DDR5 is hitting its ceiling. Enter DDR6: the next evolutionary leap in mainstream memory technology, engineered to deliver the bandwidth, parallelism, and reliability that modern AI infrastructure, high-performance servers, and advanced networking demand.

For SoC designers and verification engineers, DDR6 isn't just faster—it's fundamentally different. With Pseudo Split Die (PSD) organization, four-sub-channel DIMM architecture, native BL24 bursts, and always-on data integrity mechanisms, DDR6 introduces complexity that requires equally sophisticated verification strategies.

Synopsys is at the forefront, developing DDR6 DRAM and Registered DIMM (RDIMM) Verification IP in lockstep with evolving JEDEC standards—including the DDR6 DRAM specification and the DDR6 Registering Clock Driver, Gen 1 (DDR6RCD01, JESD331-611). This early-access VIP empowers you to validate next-generation memory controllers, PHYs, and DIMM subsystems before silicon arrives, reducing risk and accelerating time-to-market.

Modern compute architectures are increasingly memory-starved. It's no longer just about processor speed—it's about how quickly data flows between compute and memory. Three critical trends are pushing DDR5 to its limits:

1. AI everywhere: Large language models (LLMs), vector databases, and retrieval-augmented generation (RAG) pipelines demand massive in-memory datasets with high random-access bandwidth. CPUs running AI inference workloads need memory that can keep pace with multi-threaded, data-intensive operations.

2. Cloud density and virtualization: Each server socket now hosts dozens of cores and hundreds of virtual machines. Aggregate memory bandwidth must scale linearly—or performance collapses. DDR5's two-sub-channel architecture creates contention for scattered, small-granularity accesses.

3. Fleet-scale reliability: Hyperscale data centers operate tens of thousands of DIMMs continuously. Silent data corruption, row-hammer effects, and thermal stress accumulate over time. What was once a rare event becomes statistically inevitable at scale, demanding always-on RAS (reliability, availability, serviceability) features.

Consider a modern AI training cluster with 1,024 nodes, each equipped with dual-socket server CPUs, 2TB of DDR5 RDIMM memory, and 8 GPUs per node. During distributed training of a 70B-parameter model, the CPU memory subsystem plays a critical role in data preprocessing pipelines, model checkpoint serialization, and embedding table lookups for recommendation workloads that exceed GPU HBM capacity. With DDR5 server RDIMMs operating at up to DDR5-6400 (6.4 Gb/s per pin) across 8 channels per socket, each node delivers roughly 400 GB/s of aggregate memory bandwidth; yet this becomes a bottleneck when CPU-resident portions of hybrid CPU-GPU training pipelines, large-scale data augmentation, or memory-mapped dataset streaming saturate the available bandwidth. DDR6 RDIMM, with speeds starting at DDR6-8800 and scaling to DDR6-12800 (12.8 Gb/s per pin), combined with the 1:2 clocking architecture that doubles DRAM-side frequency while maintaining signal integrity on the host channel, can deliver over 2× the per-pin bandwidth. For a 1,024-node cluster, this translates to a substantial reduction in CPU-side data starvation, faster checkpoint writes, and improved utilization of expensive GPU compute resources that would otherwise idle waiting for data.

DDR6 isn't an incremental speed bump—it's a ground-up redesign addressing bandwidth, parallelism, and reliability simultaneously.

DDR6 introduces architectural innovations spanning the command interface, clocking, training, data integrity, and reliability. Together these enable higher sustained bandwidth, stronger reliability, and more efficient validation of increasingly complex memory subsystems.

• Pseudo split die (PSD) organization: the device is partitioned into pseudo split dies with independent per-PSD resources (including per-pin VREFCA and per-pin VREFDQ training performed independently per PSD), enabling fine-grained parallelism and per-PSD calibration.
• High-speed data path with BL24 and 128-bit prefetch: a native burst length of 24 with a 128-bit prefetch, sized per configuration (3-DQ and 6-DQ PSDs), with metadata carried alongside user data in the burst.
• Comprehensive data integrity: Command/Address Parity, a configurable data cyclic redundancy check (CRC), and symbol-based on-die error correction code (ECC) with metadata carried in the burst—selected by mode registers at initialization.
• Row-disturb mitigation via PRAC: Per row activation counting maintains per-row activation counters with back-off and refresh-management mechanisms to protect neighboring rows from disturbance.

On a registered DIMM, a DDR6 Registering Clock Driver, Gen 1 (DDR6RCD01, JEDEC JESD331-611—currently a draft standard) buffers the command/address (CA) bus, chip selects, and the clock between the host controller and the DRAMs, improving signal integrity and loading at high data rates. Key characteristics defined in the current draft include:

• Two pseudo-channels (PCHs) per RCD that share common clocking and a single PLL but otherwise operate independently. On an RDIMM, one DIMM channel comprises two channels and four pseudo-channels—that is, two DDR6RCD01 devices per module.
• Encoded chip select for up to four ranks: each PCH takes a six-bit double-data-rate CA input (DCA) and one chip-select input (DCS), with rank-selection information encoded on DCA5.
• 1:2 clocking architecture: the PLL-generated DRAM-side output clocks (QCK) run at twice the frequency of the host-side input clock (DCK), while CA is forwarded at matched rate.
• Command/address parity protection with command blocking on a detected parity error, DRAM alert aggregation (DERROR_IN inputs re-driven to ALERT outputs in single- or dual-alert mode), and reset re-drive (DRST_n to QRST_n).
• SidebandBus management interface (I2C or I3C Basic) for configuration and status through the RCD mode-register space.

DDR6 introduces a substantial increase in verification complexity across both the DRAM and the RCD. On the RCD side, the new 1:2 clocking architecture requires the PLL to double the host clock, creating two clock domains with DDR-to-SDR signal-rate conversion on CA and HDR on CS, along with variable-length commands (2/4/6-UI), dual parity checks (PAR1/PAR2), and encoded chip-select decoding. On the DRAM side, DDR6 adds multiple die architectures (2p3, 2p6, 1p6), configurable metadata modes (MD_OFF, MD_8b, MD_16b), write and read CRC with auto-disable, on-die ECC with multi-bit error registration, per-row activation counting (PRAC) with alert back-off protocols, DQ swizzling discovery mode, frequency set points (FSP), and an extensive training suite including CSTM, CATM, write leveling, host receiver training, and write training—each with LFSR-based PRBS pattern checking.

Synopsys is developing DDR6 DRAM, UDIMM, RDIMM, and MCDIMM verification IP (VIP) based on the latest available JEDEC DDR6 drafts. This enables customers to start verifying next-generation memory controllers, PHYs, and DIMM subsystems while the standards continue to evolve and before silicon is available.

With early access to comprehensive protocol validation, coverage-driven verification, advanced debug, and seamless integration into existing environments, Synopsys helps customers lower project risk and accelerate time-to-market for DDR6-based products. The VIP is continuously updated to stay aligned with the specifications as they progress toward ratification.

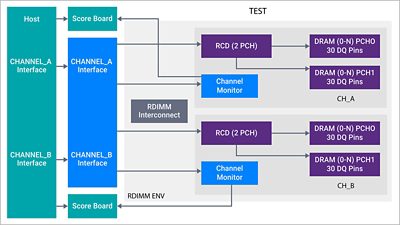

Synopsys DDR6 VIP addresses end-to-end verification complexity with JEDEC-compliant protocol agents for the RCD CA/CK and DRAM DQ/DQS interfaces, a unified reference model for behavior across both clock domains, built-in CRC and parity checkers, training-mode sequencers with automatic pass/fail evaluation, and comprehensive functional coverage. Coverage spans command types, metadata modes, error-injection scenarios, and timing corner cases, helping teams accelerate verification closure.

Built on a native SystemVerilog Universal Verification Methodology (UVM) architecture, the VIP provides protocol checking, functional coverage, checker and test plans, advanced debug, and scalable multi-sub-channel verification. It supports validation of the DDR6 feature set defined in the draft specifications, including PSD device organization, power-up and initialization flows, direct-mapped and paged Mode Register spaces, command truth tables, command/clock synchronization, BL24 data transfer, and complete training sequences for both standalone DDR6 DRAM devices and DDR6 RDIMM modules based on the DDR6RCD01 Registering Clock Driver.

Core capabilities under development include:

• Native SystemVerilog UVM architecture with configurable sub-channel, PSD, rank, and density topologies for both DRAM and RDIMM.
• DDR6 DRAM device verification—command truth-table checks, core timing parameters (row-cycle time tRC, row-active time tRAS, RAS-to-CAS delay tRCD, row-to-row delay tRRD, four-activate window tFAW, column-to-column delay tCCD, write-to-read tWTR, read-to-write tRTW, and refresh timings), and BL24 bus behavior.
• DDR6 RDIMM and DDR6RCD01 verification—CA/chip-select/clock buffering across two pseudo-channels per RCD, 1:2 PLL clocking (QCK at twice DCK), encoded chip-select decoding for up to four ranks, Encoded CS Rank Decoding / Pass-Through and ChipID Pass-Through modes, CA parity with command blocking, DERROR_IN/ALERT framing, QRST_n reset re-drive, and SidebandBus (I2C / I3C Basic) register access—with per-channel and per-PCH DIMM monitoring, reusing the DRAM protocol layer across UDIMM and RDIMM topologies.
• Functional coverage, comprehensive checker plans, and test plans aligned to the specifications.
• Multi-sub-channel and multi-rank verification with independent per-PSD timing and calibration.
• Integrated debug for command, data, training, mode-register, and RCD sideband activity.

DDR6 represents more than a speed upgrade—it's a fundamental rearchitecture of mainstream memory to meet the demands of AI infrastructure, hyperscale cloud, and next-generation servers. With Pseudo Split Die organization, four-sub-channel parallelism, BL24 bursts, DDR6RCD01-based RDIMMs, and always-on data integrity, DDR6 delivers the bandwidth, concurrency, and reliability that DDR5 cannot.

For SoC designers and verification engineers, the complexity of DDR6 demands equally sophisticated validation. Synopsys DDR6 DRAM and RDIMM Verification IP—developed against the latest JEDEC drafts—empowers you to begin comprehensive verification now, reducing project risk and accelerating time-to-market.

Synopsys is partnering with early customers and collaborators to enhance the standard architecture for their next-generation designs, incorporating new features now available with the latest specifications.

Synopsys VIP is natively integrated with the Synopsys Verdi® Protocol Analyzer debug solution as well as Synopsys Verdi® Performance Analyzer. Running system-level payload on SoCs requires a faster hardware-based pre-silicon solution. Synopsys transactors, memory models, hybrid and virtual solutions based on Synopsys IP enable various verification and validation use-cases on the industry's fastest verification hardware, Synopsys ZeBu® emulation and Synopsys HAPS® prototyping systems.

1.     JEDEC DDR6 DRAM Specification (JESD79-6 Rev 0.7 )

2.     JEDEC DDR6RCD01 (JESD331-611 Rev0.5)
