Breaking the Design Closure Bottleneck with Timing-Aware Multiphysics ECO

The semiconductor chip signoff process is inherently complex, with many challenges to be overcome under intense schedule pressure. Among these, finding and fixing dynamic IR drop (voltage drop) issues is one of the most critical. Failure to achieve robust IR closure directly limits the power, performance, and area (PPA) of the fabricated chip, and can significantly impact the electrical yield. Specifically, unresolved IR drop issues lead to binning loss, where fewer dies on a wafer meet the required performance or frequency targets. In other words, chips that do not achieve the desired operating frequency due to voltage drop are downgraded or discarded, reducing the number of usable high-performance dies per wafer. Taking too long to achieve IR closure delays both initial tape-out and production release. A chip that is late to market, exceeds cost targets, or fails to meet its target PPA and yield objectives may no longer be viable for its intended end market.

IR drop has created a dynamic, multiphysics bottleneck that must be addressed to avoid this outcome. There are several factors that make IR drop a more significant challenge than it was in the past, transforming it from a routine electrical issue into a critical signoff bottleneck. As geometries have shrunk, advanced-node scaling effects have increased both resistance and current density of signal paths—directly amplifying voltage drop. Higher resistance combined with increased current means more voltage drop. This decreases the margin for VDD supply voltage, potentially compromising circuit performance and reliability, making IR closure both complex and more critical than at previous technology nodes.

While resolving IR issues has become more critical, analyzing IR drop has grown significantly more complex. Dynamic switching behavior means that worst-case conditions dominate the analysis. At advanced nodes, device interaction further compounds this challenge—stress on one transistor can affect its neighbors, contributing to the analytic complexity. In addition, electro-thermal coupling has transformed traditional IR drop analysis into a multiphysics problem. Accurate modeling of these coupling effects is essential to optimizing PPA and ensuring robust chip reliability.

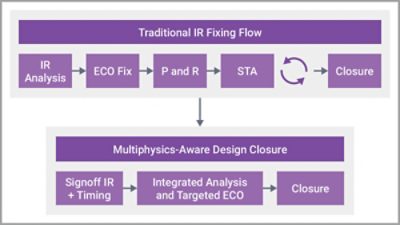

To achieve better results, iterative fixing must be replaced by a multiphysics-aware IR flow with predictive optimization. In this improved flow, signoff-quality IR drop analysis is integrated with signoff STA, so that the impact of possible changes can be evaluated automatically and immediately. As a result, the ECO process requires fewer iterations, with targeted changes whose impact is predicted with a high degree of accuracy. Convergent, integrated multiphysics analysis enables automated, signoff timing-aware IR fixing—driving fewer, higher-quality ECOs. The result is faster IR closure with better PPA for the resulting chip. These benefits are not theoretical—they are realized today in a production-proven, user-validated flow.

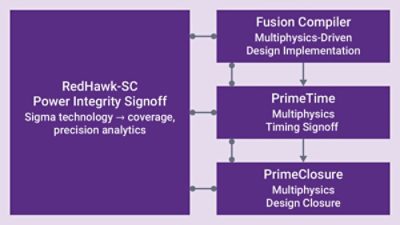

The unified multiphysics flow from implementation through signoff closure is achieved through the fusion of implementation and signoff technologies across the following Synopsys solutions:

• Synopsys RedHawk-SC: comprehensive power integrity signoff
• Synopsys Fusion Compiler™: RTL-to-GDSII implementation platform
• Synopsys PrimeTime®: industry-golden static timing analysis
• Synopsys PrimeClosure™: golden signoff design closure

This tight integration delivers multiple benefits. The initial layout is far less likely to exhibit timing or IR drop violations due to native multiphysics awareness within implementation—enabling a more correct-by-construction design with reduced margin requirements and better PPA out of the gate. In addition, native multiphysics analysis on timing paths provides improved visibility into IR and thermal impact, enabling predictive design closure optimization to address the remaining IR violations without degrading chip timing. The tight linkage between P&R, IR analysis, STA, and ECO significantly reduces the risk of timing disruption during IR fixes, allowing both IR and timing closure to be achieved more efficiently. Turnaround time at each stage is reduced, and overall convergence is dramatically accelerated. These results are validated by measurements from real-world production projects across leading semiconductor companies and a wide range of applications.

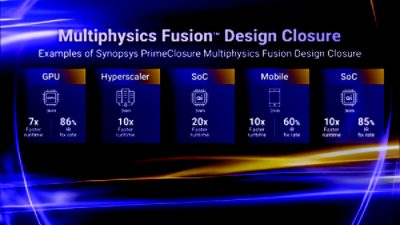

These results demonstrate up to an 85% reduction in IR violations is achievable, along with a typical 5x-10x improvement in overall runtime. Time to achieve IR signoff and overall design closure is reduced by several weeks. ECO iterations are reduced by 50-80% and total negative slack (TNS) is significantly improved. In addition, overall PPA improves by at least 2% compared to traditional manual, iterative IR flows. A better chip in shorter time with much less manual effort is the highly beneficial outcome.

Finally, these results highlight the power of technology integration within a unified solution portfolio. Building on the successful Synopsys-Ansys combined flow introduced in 2022, this deeper fusion enables a new level of tightly coupled multiphysics convergence. As chip designs move to smaller nodes and 3DIC architectures, Synopsys Multiphysics Fusion solutions are becoming critical to achieving performance, accuracy, and predictability.
