Verify High-Performance I3C Designs with HDR & Multi-lane Support Using Synopsys I3C VIP

Today's edge computing and AI-driven systems are hitting a critical bottleneck. For instance, automotive sensor fusion platforms must process streams from multiple cameras, LiDAR, and IMUs in real-time. Mobile devices now integrate 10+ sensors for context awareness, health monitoring, and augmented reality. Industrial IoT deployments require deterministic, low-latency sensor updates across distributed networks. The common thread? Legacy I2C simply can't keep up.

Traditional I2C, even at its High-Speed Mode ceiling of 3.4 Mbit/s, struggles to meet these demands. MIPI I3C is a specification designed to preserve I2C's simplicity while delivering transformational performance gains. By maintaining the familiar two-wire architecture (SCL and SDA), I3C ensures backward compatibility with existing I2C ecosystems while unlocking baseline speeds up to 12.5 Mbit/s in Standard Data Rate (SDR) mode.

Apart from SDR mode, I3C's optional High Data Rate (HDR) modes and multilane capabilities enable throughput scaling that matches the exponential growth in sensor data volumes. For verification engineers, this evolution introduces new complexity: validating timing-critical HDR transitions, multilane synchronization, and mixed-mode operation requires sophisticated VIP tooling.

This blog examines why modern I3C implementations increasingly rely on HDR and multilane enhancements, how these features integrate with SDR operation, and how Synopsys I3C VIP delivers comprehensive verification coverage for next-generation sensor network designs.

Not every application requires maximum bandwidth. Choosing the right I3C mode depends on your data profile:

SDR Mode and Single-Lane Interfaces:

• Frequent, low-latency updates: Sensor polling in ADAS systems, where millisecond-level response times matter more than bulk throughput
• Interrupt-driven architectures: Touch controllers, proximity sensors, and accelerometers generating event-based signals
• Power-constrained IoT endpoints: Battery-operated devices where SDR's lower switching activity extends operational life
• Baseline compatibility: SDR serves as I3C's universal fallback mode, ensuring interoperability across diverse device generations

HDR Mode and Multilane Interfaces:

• Burst data transfers: Downloading firmware updates, transferring image sensor frames, or streaming audio codecs
• Security subsystems: Cryptographic operations requiring rapid key exchange or certificate validation
• Memory-intensive operations: EEPROM programming, flash storage access, or display buffer updates
• AI inference pipelines: Transferring preprocessed sensor data to neural processing units

A smartphone camera module might use SDR for autofocus commands (low latency, small payload) while switching to HDR-DDR + Quad-lane for transferring 12MP image data to the application processor—optimizing both responsiveness and throughput within a single system.

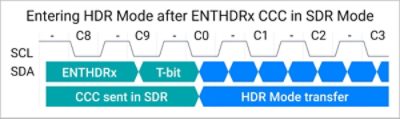

Unlike SDR mode, HDR modes sample data on both clock edges, effectively doubling throughput across the bus. The I3C specification defines four HDR modes, each enabled through an ENTHDRx CCC command: HDR-DDR with ENTHDR0, HDR-TSP with ENTHDR1, HDR-TSL with ENTHDR2, and HDR-BT with ENTHDR3. After the Primary Controller enters HDR mode, transfers continue in that mode until it sends an Exit Pattern. The Primary Controller can also issue a Restart Pattern to continue HDR operation with updated parameters.

HDR-DDR (Double Data Rate):

• Transfers data in word-based units, typically with a 16-bit payload, 2-bit preamble, and 2-bit parity field.
• Ideal for streaming applications requiring moderate error detection
• Typical use case: Audio codec data transfer at 25 Mbit/s

HDR-TSP/TSL (Ternary Symbol - Pure/Legacy):

• Ternary modes process two bytes at a time with 2-bit parity, encoding 18 bits into 12 ternary symbols.
• Transmits symbols simultaneously over both SCL and SDA lines
• Achieves higher spectral efficiency in electrically noisy environments
• Application example: Industrial sensors in high-EMI factory floors

HDR-BT (Bulk Transport):

• Optimized for 32-byte block transfers
• Perfect for firmware updates or large configuration register writes
• Real-world deployment: Over-the-air sensor calibration in automotive ECUs

With the rise of edge AI, HDR-BT has gained prominence for transferring quantized neural network weights from system memory to accelerator caches.

To meet increasing bandwidth demands while maintaining low power consumption, I3C enables the use of additional physical wires (i.e., additional data lanes along with the SDA lane) for data transfer between multilane capable devices, which have multilane functionality enabled. Primary Controller shall use the Direct Set/Broadcast MLANE CCC to set up multilane functionality for any I3C transfer mode (e.g., SDR, HDR-DDR, HDR-TSP, or HDR-BT). I3C spec allows to use up to 3 additional SDA lanes for data transfer.

Employing additional physical data lanes, the bus bandwidth is increased proportionally—for example, Dual‑lane mode provides up to 2× throughput, while Quad‑lane mode offers up to 4×. Importantly, the standard I3C frame format remains unchanged, allowing more data to be transmitted per frame without altering protocol structure.

The Synopsys I3C VIP addresses these challenges through native support for advanced I3C features:

HDR Mode Coverage

• All CCC Commands in HDR Context: Validates ENTHDR sequences, mode-specific addressing, and exit patterns
• Early Termination Testing: Injects premature STOP conditions in HDR-DDR to verify Target recovery logic
• CRC Validation: Automatically checks CRC-32 in HDR-BT block transfers, with configurable error injection
• Ternary Encoding Verification: Confirms correct symbol mapping in HDR-TSP/TSL modes

Multilane Operation Features

• Flexible Payload Handling: Supports arbitrary transfer sizes across single/dual/quad-lane configurations
• Padding and Truncation Logic: Verifies correct handling when data doesn't align with lane width (e.g., 17-byte transfer on quad-lane)
• IBI Over Multilane: Tests In-Band Interrupt timing when additional lanes are active
• Default Lane Configuration: Allows setting dual/quad-lane as the default mode to accelerate regression testing

Advanced Verification Capabilities

• Mixed-Mode Scenarios: Seamlessly transitions between SDR/HDR and single/multilane within a single test sequence
• Protocol Checker Integration: Real-time violation detection for timing, parity, and CRC errors

Performance Analysis with Verdi

Integration with Synopsys Verdi Performance Analyzer enables:

• Throughput Profiling: Measure actual vs. theoretical bandwidth across all mode combinations
• Latency Breakdown: Identify bottlenecks in mode transition overhead
• Power Estimation: Correlate lane utilization with dynamic power consumption
