What is a Data Center?

The Engineering Definition: A data center is a fault-tolerant facility engineered to maintain continuous operation of high-density IT equipment through redundant power distribution, precision thermal management, and secure network connectivity, operating within strict environmental parameters.

The complexity of a data center lies in the interdependence of its systems. A failure or inefficiency in one domain cascades into others. For example, an increase in compute density requires a proportional increase in power delivery, which generates more heat, which in turn requires more aggressive cooling, which consumes more power. Breaking this cycle requires advanced simulation and optimization across the entire facility life cycle.

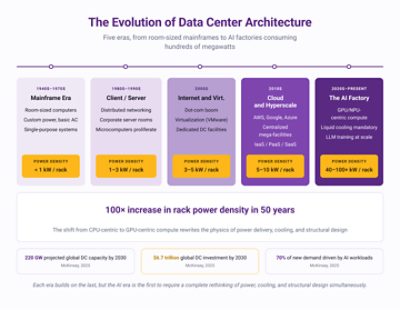

Data center architecture has evolved through several distinct eras, driven by the continuous miniaturization of compute power and the exponential growth of data. The current era — often described as the AI factory — refers to facilities purpose-built for GPU-centric workloads at densities and scales that earlier facility designs could not support. The term is used here in that descriptive sense, as an industry shorthand.

The demands of training large language models (LLMs) and running complex simulations have pushed traditional air-cooled data center designs to their physical limits for the highest-density workloads, forcing a reimagining of power and thermal infrastructure for those facilities.

A modern data center is built on five foundational pillars. While the IT equipment (compute, storage, networking) performs the actual data processing, the facility infrastructure (power, cooling) ensures that processing can occur continuously and safely.

1. Compute Infrastructure

The compute layer is the brain of the data center, consisting of the physical servers that execute applications and process data. The architecture of these servers dictates the physical layout of the entire facility.

• Rack Servers: Standardized, standalone servers designed to be mounted in industry-standard 19-inch or 23-inch-wide racks. They are measured in rack units (U), with 1U equaling 1.75 inches in height. A typical rack server ranges from 1U to 4U. Because each rack server contains its own power supply, cooling fans, and network interfaces, it offers flexibility but consumes more physical space and power per compute cycle than denser alternatives.
• Blade Servers: To maximize compute density per square foot, engineers developed blade servers. These are stripped-down server boards containing only the core processing components (CPU, memory, and local storage). Multiple blades are housed within a single, shared chassis that provides centralized power, cooling, and network connectivity. This shared infrastructure improves energy efficiency and reduces cabling complexity, making blade enclosures the standard for high-density enterprise deployments.
• Mainframes: While often considered legacy technology, modern mainframes remain critical for financial institutions, airlines, and government agencies that require high transaction processing speed, security, and fault tolerance. A single modern mainframe can process billions of encrypted transactions per day, operating with internal redundancies that allow for hardware replacement without system downtime.
• Processors (CPUs vs. GPUs/NPUs): The most significant architectural shift in the compute layer is the transition in processor types. Traditional enterprise workloads (web servers, databases, virtual machines) rely on central processing units (CPUs) optimized for sequential processing and rapid context switching. Modern AI training, inference, and high-performance computing (HPC) workloads require massive parallel processing capabilities. This has driven the proliferation of graphics processing units (GPUs) and specialized neural processing units (NPUs). These chips are physically larger, draw more current, and operate at higher temperatures than traditional CPUs. This shift from CPU-centric to GPU-centric compute is the primary driver of the exponential increase in rack power densities across the industry.

2. Storage Infrastructure

Data centers require massive, highly available, and resilient storage systems to house the exabytes of data being processed. Storage architecture is defined by how the data is accessed and the speed at which it can be retrieved.

• Direct-Attached Storage (DAS): The simplest architecture, where storage drives (HDDs or SSDs) are physically installed within or directly connected to a specific server. DAS offers low latency and low cost, but creates isolated islands of data that cannot be easily shared or scaled across the broader network.
• Network-Attached Storage (NAS): NAS systems provide file-level storage connected directly to the local area network (LAN). They operate as dedicated file servers, allowing multiple client servers to access shared files simultaneously using standard protocols like network file system (NFS) or server message block (SMB). NAS is ideal for unstructured data, file sharing, and archiving.
• Storage Area Network (SAN): For mission-critical applications requiring high performance and low latency, engineers deploy SANs. A SAN is a dedicated, high-speed network (separate from the LAN) that provides block-level storage access. To the client server, a SAN volume appears exactly as if it were a locally attached physical drive. SANs utilize high-speed protocols like Fiber Channel or internet small computer systems interface (iSCSI) and are essential for large-scale databases, virtualized environments, and enterprise resource planning (ERP) systems.
• Object Storage: As cloud computing and big data analytics have grown, object storage has emerged as the dominant architecture for massive scalability. Instead of organizing data in a hierarchical file system (like NAS) or as raw blocks (like SAN), object storage manages data as discrete objects, each containing the data itself, variable metadata, and a globally unique identifier. This flat architecture allows hyperscale providers to store and retrieve billions of files (images, videos, backups) across distributed clusters with near-infinite scalability.
• NVMe (Non-Volatile Memory Express): The physical storage media has also evolved. While spinning hard disk drives (HDDs) are still used for cheap, high-capacity archiving, the active storage tier is now dominated by solid-state drives (SSDs). NVMe is the modern protocol standard for SSDs, designed specifically to utilize the high-speed peripheral component interconnect express (PCIe) bus. By bypassing the legacy SATA/SAS interfaces designed for spinning disks, NVMe delivers higher throughput and lower latency, which is critical for feeding data-hungry AI workloads.

3. Networking Infrastructure

The network is the central nervous system of the facility. It is responsible for connecting servers to each other (east-west traffic) and connecting the data center to the outside world (north-south traffic). As distributed computing and microservices architectures have become the standard, the volume of east-west traffic has exploded, forcing a redesign of network topologies.

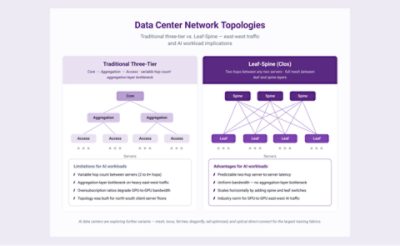

• Leaf-Spine Topology: Modern data centers have largely moved away from traditional three-tier network architectures (core, aggregation, access) in favor of leaf-spine (Clos) topologies. In this flat architecture, every leaf switch (which connects directly to the servers) connects to every spine switch (which forms the backbone of the network). This ensures that any server is the same number of network hops away from any other server, minimizing latency and eliminating the bottlenecks common in hierarchical designs. While leaf-spine remains the industry norm, AI data centers are exploring alternative topologies, such as mesh, torus, fat-tree, dragonfly, rail-optimized fabrics, and optical direct-connect networks, to better match the scale, synchronization, and traffic patterns of large-scale AI workloads.
• Top-of-Rack (ToR) Switches: High-performance switches located at the top (occasionally the middle or bottom) of each server rack. They aggregate the network connections from all the servers within that specific rack before connecting via high-speed uplinks to the leaf switches. This architecture reduces the amount of cabling required, as only a few high-capacity cables need to run from the rack to the core network, rather than individual cables for every server.
• Optical Interconnects and CPO: As data rates push past 400G, 800G, and toward 1.6T, traditional copper cabling suffers from severe signal degradation and excessive power consumption over distance. To solve this, engineers rely on fiber optics. The cutting edge of this transition is co-packaged optics (CPO), where the optical transceivers are moved off the edge of the printed circuit board and packaged directly alongside the networking ASIC (application-specific integrated circuit). This reduces the electrical trace length, cutting power consumption and improving signal integrity for high-bandwidth AI workloads.

4. Power Infrastructure

Power distribution is one of the most critical and complex engineering challenges in a modern data center. The power infrastructure must be highly reliable, conditioned, and fully redundant to prevent downtime. It must also scale to meet the demands of hyperscale facilities.

• Utility Substations and Switchgear: For large facilities, power enters directly from the high-voltage utility grid into a dedicated on-site substation. Transformers step down this high voltage (often 115 kV or higher) to medium voltage (typically 13.8 kV or 34.5 kV) for distribution throughout the campus. Switchgear then routes this power to the various buildings and systems, providing the primary layer of circuit protection and isolation.
• Uninterruptible Power Supplies (UPS): The UPS is the first line of defense against power anomalies. It serves two critical functions: it conditions the incoming utility power (smoothing out voltage sags, spikes, and frequency variations to provide clean power to the sensitive IT equipment), and it provides immediate, short-term battery backup in the event of a total utility failure. This battery runtime (typically 5 to 15 minutes) is just long enough to keep the servers running while the backup generators start up and synchronize with the load.
• Backup Generators: To survive extended utility outages, data centers rely on diesel or natural gas generators. These industrial engines are sized to carry the entire facility load (IT equipment plus cooling infrastructure) for days at a time, limited only by the on-site fuel storage capacity.
• Power Distribution Units (PDUs): Once the power is conditioned by the UPS, it is routed to PDUs located on the data center floor. These units step the voltage down again (typically to 208 V or 415 V in North America) and distribute it to the individual server racks. Modern intelligent or smart PDUs provide real-time, outlet-level monitoring of power consumption, allowing operators to track efficiency, identify stranded capacity, and safely increase rack density without tripping breakers.

5. Cooling and Thermal Management

Cooling infrastructure removes the heat generated by the compute and power systems. As rack densities increase, cooling infrastructure has become the primary constraint on data center capacity for high-density workloads..

• Computer Room Air Conditioning (CRAC) / Air Handling (CRAH): Traditional systems that circulate chilled air through the server room, often utilizing a raised floor design to push cold air up through perforated tiles into the cold aisles.
• Hot/Cold Aisle Containment: Physical barriers that separate the cold air entering the servers from the hot exhaust air leaving them, preventing mixing and improving cooling efficiency.

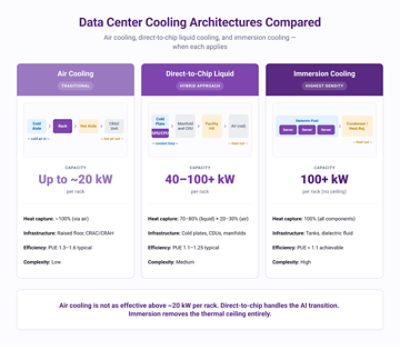

• Liquid Cooling: Above the 30–40 kW per rack threshold characteristic of AI-density facilities, air cooling becomes increasingly impractical. Liquid cooling systems (direct-to-chip or immersion) use fluids with much higher heat capacities than air to remove heat directly from the components. Below this threshold, including the densities typical of traditional enterprise compute and specialized verification platforms, air cooling continues to operate well within its limits.

Data centers are not monolithic; they are categorized based on ownership, scale, and primary use case. Understanding these distinctions is critical for architectural planning.

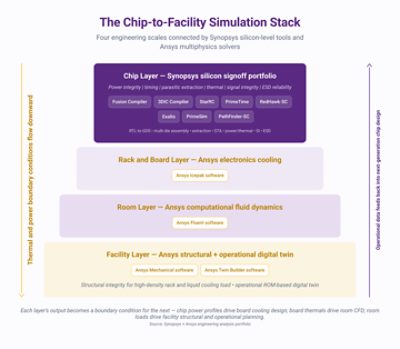

The simulation models created during the design phase do not lose their value once the facility is built. By converting these high-fidelity 3D models into reduced-order models (ROMs), engineers can create a real-time, operational digital twin of the data center.

Using Ansys Twin Builder software, operators connect the digital twin to live sensor data from the physical facility. They can monitor thermal performance, predict equipment failures before they occur, and simulate the impact of operational changes (for example, "What happens to the PUE if we increase the rack density in Aisle 4 by 20%?") without risking the live environment.

A data center digital twin is one application of the broader digital twin category, which spans electronics depth (Synopsys eDT technologies for chips, SoCs, ECUs, and complete electronic architectures) and systems-and-physics breadth (Ansys digital twin technologies for mechanical, thermal, fluid, electromagnetic, and multiphysics systems). For category-level context, see What Is an Electronics Digital Twin?.

Because data centers are the foundation of the digital economy, downtime is unacceptable. Facilities are engineered with varying levels of redundancy to ensure continuous operation, even during hardware failures or utility outages.

The industry standard for evaluating this reliability is the Uptime Institute's Tier Classification System.
