What Is a Digital Twin?

• Definition: A digital twin is an integrated, data-driven virtual representation of a real-world entity or process, synchronized at a specified frequency and fidelity to mirror its physical counterpart.
• The Full Stack: Digital twins span the entire product life cycle. Synopsys eDT technologies focus on electronics depth, chips, systems-on-chip (SoCs), electronic control units (ECUs), and complete electronic/electrical (E/E) architectures. Ansys DT technologies focus on systems, physics, and artificial intelligence (AI) breadth. Both span the life cycle of their respective domains.
• Core mechanism: Unlike static 3D models or single-run simulations, a digital twin maintains a continuous, bidirectional data exchange — the digital thread — with the physical world.
• Primary value: Engineering teams use digital twins to accelerate time-to-market, conduct risk-free scenario testing, and enable predictive maintenance that reduces operational downtime.
• Market scale: The global digital twin market is expanding rapidly, valued at $24.48 billion in 2025 and projected to reach $384.79 billion by 2034 as adoption accelerates across manufacturing, automotive, and semiconductor industries.

The critical differentiator is synchronization. A digital twin is not a static snapshot. It is an active, evolving model connected to its physical counterpart in real time, through a continuous flow of data known as the digital thread. When the physical asset experiences a change in temperature, load, or software state, the virtual model updates to reflect that reality. Conversely, engineers can run simulations on the virtual model to predict future behavior and send automated adjustments back to the physical asset.

This bidirectional data exchange separates true digital twins from traditional engineering simulations. While a simulation is typically a single-run analysis based on assumed parameters, a digital twin persists over time, learning and adapting based on real-world inputs.

The scale of adoption reflects the value of this capability. According to Fortune Business Insights, the global digital twin market was valued at $24.48 billion in 2025 and is projected to reach $384.79 billion by 2034. Engineering teams across industries are moving past pilot projects and deploying digital twins to solve complex integration challenges, reduce physical prototyping costs, and optimize operational performance.

The scope of what qualifies as a digital twin has also expanded. Early implementations focused on monitoring individual pieces of equipment, such as a pump, turbine, or motor. Today, digital twins model entire systems: a complete vehicle, a semiconductor fabrication facility, or a national power grid. Some of the most advanced implementations model the product itself during the design phase, long before any physical asset exists. This design-phase application, explored in the next section, represents a significant expansion of the digital twin concept beyond its operational monitoring origins.

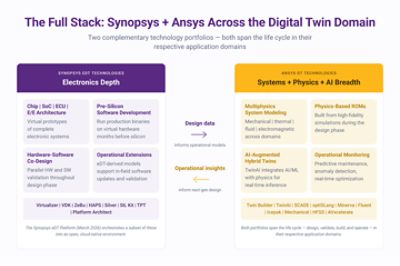

Digital twins are often discussed as a single technology applied at one stage of a product's life. The reality is more layered. The category spans multiple application domains, from electronics depth, systems-and-physics breadth, and the most sophisticated implementations combine both, with bidirectional data flow between them across the product life cycle.

Two technology portfolios serve this category. Synopsys eDT technologies focus on electronics depth, including chips, systems-on-chip (SoCs), electronic control units (ECUs), and complete electronic/electrical (E/E) architectures. Ansys DT technologies focus on systems-and-physics breadth, such as mechanical, thermal, fluid, electromagnetic, and multiphysics systems. Each portfolio operates across the product life cycle in its respective domain, from early design through operational deployment.

The Synopsys eDT technologies portfolio supports the full design-and-validation workflow for electronic systems. Engineers use this portfolio, including Synopsys Virtualizer tool suite for the creation of virtual prototypes of target hardware, Synopsys Virtualizer Development Kits (VDKs), Synopsys ZeBu emulation system, Synopsys HAPS prototyping systems , Synopsys Silver software-in-the-loop (SiL) solution to create and run virtual electronic control units (vECUs), Synopsys SIL Kit open-source library, Ansys TPT embedded software test tool, and Synopsys Platform Architect standards-based performance and power analysis tool based on SystemC, to build, test, and debug software on virtual replicas of chips, SoCs, ECUs, and complete E/E architectures. Because virtual prototypes execute unmodified production software binaries, software teams can begin validation months before physical silicon is manufactured. The Synopsys eDT Platform, launched in March 2026, orchestrates a subset of these technologies into an open, cloud-native environment.

The Ansys DT technologies portfolio supports systems-and-physics digital twins across the life cycle. Engineers use this portfolio, including Ansys Twin Builder structural finite element analysis software, Ansys TwinAI AI-powered digital twin software, Ansys SCADE embedded software product collection, Ansys optiSLang process integration and design optimization software, Ansys Minerva simulation process and data management software, and domain physics tools like Ansys Fluent fluid simulation software, Ansys Icepak electronics cooling simulation software, Ansys Mechanical structural finite element analysis software, Ansys HFSS high-frequency electromagnetic simulation software, and Ansys AVxcelerate Autonomy autonomous vehicle development and safety validation toolchain, to build digital twins of mechanical, thermal, fluid, electromagnetic, and multiphysics systems. Reduced-order models (ROMs) built from high-fidelity Ansys simulations during the design phase become the physics backbone of operational digital twins. AI augmentation via TwinAI software calibrates those ROMs against real-world data for operational deployment.

Together, these portfolios cover the full digital twin category, from electronics through systems, design through operations. The relationship is not a one-way design-to-operations handoff. Operational data captured by Ansys DT technologies informs next-generation Synopsys eDT technologies and Ansys design-phase simulations. Each product generation benefits from the operational insights of its predecessor. The combined Synopsys + Ansys footprint spans electronics depth and systems-and-physics breadth, a coverage profile relatively rare across the industry.

Consider a practical example. Volvo Cars built a complete cloud-hosted eDT to validate its Core System Platform and full vehicle network long before physical ECUs were available. Using Silver software, Volvo achieved early integration testing and continuous validation, dramatically reducing downstream integration risk. Once those vehicles are manufactured and deployed, Ansys DT technologies can monitor real-world thermal performance, power consumption, and software behavior. If the operational twin detects that a controller consistently runs hotter than predicted under certain driving conditions, that data flows back to the design team. The next silicon revision accounts for the thermal issue before a single transistor is laid down.

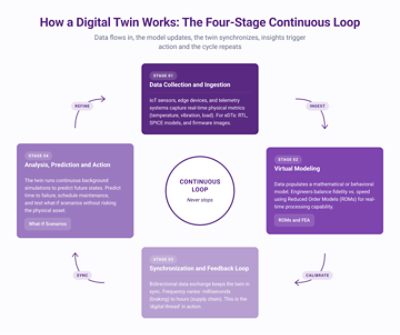

Building and operating a digital twin requires a sophisticated architecture that bridges the physical and virtual worlds. The process is not a linear pipeline but a continuous, four-stage loop.

1. Data Collection and Ingestion

The foundation of any digital twin is data. For operational twins, this means deploying internet of things (IoT) sensors, edge computing infrastructure, and telemetry systems to capture real-time physical metrics like temperature, vibration, and fluid behavior. For design-phase eDTs, the data consists of highly accurate design files — register-transfer level (RTL) code, simulation program with integrated circuit emphasis (SPICE) models, and firmware images — imported from tools like the Virtualizer suite.

2. Virtual Modeling

The ingested data populates a mathematical or behavioral model. Engineering teams must balance fidelity against computational speed. A high-fidelity 3D physics simulation provides deep accuracy but may run too slowly for real-time decision-making. To solve this, engineers frequently use ROMs. A ROM simplifies the complex physics model, retaining the essential mathematical behavior while executing fast enough to process real-time sensor data.

3. Synchronization and the Feedback Loop

This is where the model becomes a twin. The system establishes a bidirectional data exchange. Changes in the physical world update the virtual model, ensuring the twin always reflects the current state of the asset. This synchronization occurs at a specified frequency, such as milliseconds for an automotive braking system, or perhaps hourly for a supply chain process.

4. Analysis, Prediction, and Action

With the synchronized twin running, engineers and automated systems can extract value. The twin runs continuous background simulations to predict future states. If a bearing shows early signs of wear, the twin predicts the time to failure and schedules maintenance. Engineers can also use the twin for risk-free scenario testing, injecting faults into the virtual model to see how the system responds without endangering the physical asset.

The four stages are not sequential steps that happen once. They form a continuous loop. Data flows in, the model updates, the twin synchronizes, insights are generated, and those insights trigger new data collection or model refinement. Over time, the twin becomes increasingly accurate as it accumulates more operational history and as engineers refine the underlying physics models based on observed discrepancies between predicted and actual behavior.

Digital twins operate at different scales of application complexity. The industry generally recognizes a four-tier operational taxonomy, to which the eDT adds a distinct application category.

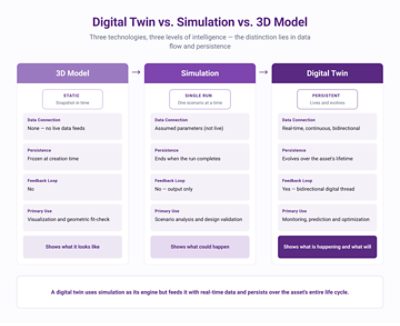

The terms digital twin, simulation, and 3D model are frequently used interchangeably, but they represent very different engineering capabilities. The distinction lies in the flow of data and the persistence of the model.

Engineering teams adopt digital twins to solve specific, measurable business problems. The technology delivers value across five primary areas, supported by industry data and real-world deployments.

1. Accelerated Time to Market

In the design phase, eDTs enable shift-left development. Software teams no longer have to wait for physical prototypes to begin coding and validation. By running production binaries on virtual silicon, companies can cut development times significantly. McKinsey reports that digital twins have reduced development times by up to 50% for some users. In the automotive sector, original equipment manufacturers (OEMs) using the Synopsys eDT Platform can achieve up to 90% of software validation prior to hardware availability.

2. Predictive Maintenance and Reduced Downtime

Operational twins detect anomalies long before they cause catastrophic failures. By continuously comparing real-time sensor data to the physics-based model, the twin identifies the subtle signatures of wear and tear. This enables operators to schedule maintenance precisely when needed, rather than relying on arbitrary calendars or waiting for a breakdown. Industry surveys consistently report that organizations deploying digital twin–based predictive maintenance achieve double-digit return on investment (ROI) within the first deployment cycles, driven by avoided unplanned downtime and extended asset life.

3. Risk-Free Scenario Testing

Engineers can simulate extreme conditions, failure modes, and design changes without risking physical assets or production schedules. If a utility company wants to know how a power grid will handle a sudden spike in renewable energy input, it can test the scenario on the digital twin first. If an automotive OEM wants to understand how a new braking algorithm will perform on wet roads at 80 mph (130 km/h), they can inject that scenario into the eDT rather than building a physical prototype and booking a test track. The ability to test hundreds of scenarios in the time it would take to run one physical test is a significant competitive advantage.

4. Sustainability and Energy Optimization

Digital twins provide the granular visibility required to optimize energy consumption and reduce material waste. By simulating manufacturing processes before they run, companies can identify inefficiencies and tune their operations for minimal environmental impact. McKinsey notes that digital twins can reduce material waste by approximately 20% in consumer electronics manufacturing. Ansys data reinforces this: a renowned automobile manufacturer achieved a 30% reduction in factory energy costs by deploying digital twins across its value chain.

5. Cost Reduction

The cumulative effect of the previous four benefits is a measurable reduction in engineering and operational costs. Fewer physical prototypes are required during design. Fewer late-stage design changes occur because issues are caught in the virtual environment. And in the field, optimized maintenance schedules prevent the costs associated with unplanned downtime. The savings compound over time: each generation of a product benefits from the operational data captured by the previous generation's twin, reducing the number of design iterations needed.

Digital twins are changing how engineering teams work across every major discipline. The following examples highlight how different industries apply the technology, from the silicon level to the system level, with measurable outcomes.

Manufacturing and Industry 4.0

Manufacturing is the most mature sector for digital twin adoption, and the use cases are well established. Factory operators use process twins to optimize floor layouts, simulate production lines, and implement predictive maintenance on critical machinery. A manufacturer might create a system twin of an entire assembly line, modeling the interaction between robotic arms, conveyor systems, and quality inspection stations. When a sensor on a robotic arm detects an anomaly in motor current draw, the twin predicts whether the arm will fail within the next 200 operating hours and schedules a replacement during a planned maintenance window rather than an unplanned shutdown.

Real-world deployments demonstrate the impact. A major mining company installed digital twins at two sites, resulting in a greater than 15% improvement in both productivity and cost savings(Ansys, Environmental Sustainability in Focus: Simulation Product Handprint — Digital Twins). Twin Builder software enables engineers to create these high-fidelity models, reducing downtime and improving overall equipment effectiveness (OEE).

Automotive and Software-Defined Vehicles (SDVs)

The automotive industry is moving rapidly toward software-defined vehicles, a point at which the value of the car is increasingly dictated by its code rather than its engine. A modern premium vehicle contains over 100 million lines of software running across dozens of ECUs. Engineering teams use eDTs to perform virtual ECU testing and advanced driver-assistance systems (ADAS) validation long before the physical car is built.

Continental's integration of Synopsys virtual ECU solutions with CAEdge, its cloud-based development environment, demonstrates how eDTs accelerate shift-left development for software-defined vehicle programs. As Gilles Mabire, Chief Technology Officer at Continental Automotive, has noted: "Synopsys' virtual ECUs and vehicle digital twin capabilities enable us to develop and test advanced software solutions earlier, so they can be deployed to vehicles faster." At the operational level, system twins monitor fleet-wide vehicle performance, feeding data back to inform over-the-air software updates.

Aerospace and Defense

In aerospace, the cost of physical prototyping and the stakes of system failure are exceptionally high. A single satellite prototype can cost hundreds of millions of dollars, and a software defect in an avionics system can have catastrophic consequences. Defense contractors use digital twins for avionics verification, mission readiness simulation, and satellite system monitoring.

The Platform Architect tool enables early architecture exploration, while Twin Builder software provides the physics-based simulation depth required to meet stringent safety standards like the RTCA’s DO-178C. The SCADE product collection provides model-based development for safety-critical aerospace software, with native DO-178C tool qualification support. The combination enables defense programs to reduce the number of physical test articles while maintaining, or improving, certification confidence. Industry data shows that a major aerospace company using digital twin asset development models achieved a 40% improvement in first-time quality of parts and systems.

Energy and Utilities

Power grids and renewable energy installations are highly complex distributed systems. Energy companies deploy digital twins to optimize grid load, integrate intermittent renewable sources, and monitor the structural health of assets like wind turbine blades.

The United Kingdom Atomic Energy Authority (UKAEA) provides a powerful example of digital twin capability at the cutting edge of physics. UKAEA uses Twin Builder software to model fusion reactor components for clean energy production, building a test rig called CHIMERA to simulate the extreme conditions of a fusion power plant. On a broader scale, Wärtsilä uses Twin Builder software and Fluent software for complex battery system storage modeling, designing fully integrated energy storage systems for sustainable energy optimization across solar and wind farm applications.

Healthcare and Pharma

The medical sector applies digital twins at both the patient and the process level. Biopharma companies use process twins to simulate and optimize drug manufacturing workflows, ensuring strict regulatory compliance while maximizing yield. Medical device manufacturers use component and system twins to validate the embedded software in critical care equipment.

Semiconductor Design

At the foundation of all these industries is silicon. Semiconductor companies use eDTs to accelerate SoCs bring-up and perform pre-silicon validation. The Synopsys eDT Platform enables chip designers to hand over a virtual replica of the hardware to the software team months before tape-out, compressing what was once a sequential process into a parallel one. AI-augmented simulation is increasingly part of this work — see how SimAI software optimizes chip design. For a detailed exploration of how digital twins are applied across the semiconductor value chain, read Digital Twins for the Semiconductor Industry.

While the benefits are substantial, engineering teams evaluating digital twin adoption must navigate several technical and organizational challenges.

Data Integration Complexity

A digital twin is only as good as the data feeding it. Most enterprises do not have a single, unified data layer. Instead, they operate with a patchwork of IoT sensors, enterprise resource planning systems, legacy product life cycle management databases, and proprietary design tools, each with its own data format and update cadence. Connecting these disparate sources into a unified, synchronized model requires significant middleware and standardization effort. Data silos remain the primary barrier to enterprise-wide twin deployment, and solving this problem often takes longer than building the twin itself.

Computational Cost

High-fidelity physics simulations demand massive compute resources. Running these simulations in real time to process continuous sensor data is often impractical. The industry is addressing this through ROMs, which simplify the physics to run faster, and by leveraging scalable cloud infrastructure.

Multidisciplinary Engineering Effort

Digital twin projects sit at the intersection of multiple engineering disciplines. A production-ready twin combines physics expertise (e.g., mechanical, thermal, and electrical), software engineering (e.g., telemetry pipelines, simulation orchestration, and integration with existing systems), and domain knowledge of the asset being modeled. Most organizations build these capabilities incrementally, starting with a single use case where a clear ROI can be demonstrated, then expanding to adjacent assets and workflows as the underlying competencies mature. Technology vendors that provide pre-integrated digital twin frameworks (such as Synopsys eDT technologies for electronics and Ansys DT technologies for physics-based systems) can substantially reduce the cross-disciplinary effort required.

Interoperability and Standards

Historically, digital twins have been built as bespoke, proprietary systems that cannot communicate with one another. If an automotive OEM wants to integrate a digital twin of a battery (provided by Supplier A) with a digital twin of a motor (provided by Supplier B), the lack of universal data exchange standards creates friction. Organizations like the Digital Twin Consortium and the Institute of Electrical and Electronics Engineers (IEEE) are actively working to establish these interoperability frameworks.

Security and Intellectual Property Protection

Digital twins contain highly sensitive information, and the security implications differ depending on the twin type. An operational twin reveals the exact performance characteristics and vulnerabilities of a physical asset — valuable intelligence for a competitor or a hostile actor. A design-phase eDT is even more sensitive: it contains the pre-silicon RTL and proprietary firmware that represent a company's core intellectual property. Compliance frameworks add further constraints — automotive software follows ISO 26262, aerospace software follows DO-178C, and medical device software follows IEC 62304 — each requiring documented, auditable controls on access to the twin and its underlying design data. Securing the digital thread and controlling access to the twin is a critical engineering requirement, not merely an Information Technology concern. Encryption, role-based access controls, and secure enclaves for simulation execution are all part of the solution, though industry-wide best practices are still maturing.

The technology continues to evolve, driven by advances in artificial intelligence (AI) and edge computing. Three key trends are shaping the next generation of digital twins, all increasingly framed within the era of pervasive intelligence in which AI capabilities are embedded throughout the engineering and operational stack.

Hybrid Digital Twins

Traditional twins rely heavily on physics-based simulation. While accurate, these models are computationally expensive. The industry is moving toward hybrid digital twins, which combine physics-based simulation with AI and machine learning. The AI analyzes historical data to identify patterns, while the physics model ensures the predictions remain grounded in reality. TwinAI software is one of the products applying this approach, creating twins that are both highly accurate and fast enough for real-time deployment. Learn more via the Ansys Hybrid Analytics application page or explore Hybrid Digital Twins.

Executable Digital Twins (xDT)

Historically, digital twins lived in the cloud or on massive on-premises servers. The emerging trend is the executable digital twin (xDT), a lightweight, compiled version of the twin that can be deployed directly to edge devices. An xDT runs locally on the physical asset itself, enabling real-time, autonomous decision-making without the latency of a cloud connection. This is particularly relevant for applications where milliseconds matter, such as autonomous vehicle control or industrial safety systems. The xDT receives sensor data, runs a simplified physics model on the edge processor, and makes control decisions locally, only syncing with the cloud-based full-fidelity twin when bandwidth allows.

Generative AI Integration

Generative AI (GenAI) is beginning to intersect with digital twin technology. Engineers are using large language models (LLMs) to structure the massive volumes of unstructured data (e.g., maintenance logs and design notes) that feed the twin. GenAI can also synthesize the complex outputs of a digital twin simulation into natural language summaries, enabling nontechnical stakeholders to query the twin directly. A plant manager could ask the system, "What is the probability of a conveyor failure on Line 3 this week?" and receive an easy-to-understand, straightforward answer backed by the twin's predictive analytics.

While the term digital twin is relatively new, the underlying concept of using a replica to monitor and troubleshoot a physical asset has roots in the space race.

The conceptual leap from physical replica to digital model came in the early 2000s, when Michael Grieves presented his "mirrored spaces" framework at the University of Michigan. Grieves proposed that every physical product should have a virtual counterpart, connected by a continuous flow of data. Several years later, John Vickers is credited with using the term digital twin in National Aeronautics and Space Administration (NASA) Technology Roadmaps from around 2010. Since then, the concept has moved from aerospace research labs into mainstream industrial adoption.

The following resources expand on specific digital twin topics covered above.

• What Is an Electronics Digital Twin? — A detailed guide to design-phase digital twins for chips, SoCs, and ECUs.
• Digital Twins for the Semiconductor Industry — How digital twins are applied across the semiconductor value chain.
