Verifying eUSB2 v2 Designs for Next-Gen Embedded Workloads with Synopsys USB VIP

Embedded systems are at an inflection point. Today's edge devices—from AI-powered smart cameras to always-on IoT sensors—demand exponentially more bandwidth than legacy USB 2.0 interfaces can deliver. Yet they must operate within the same stringent power and area budgets. The eUSB2 Version 2.0 (eUSB2v2) specification solves this dilemma by delivering multi-gigabit performance on a USB 2.0 foundation, optimized specifically for in-box, low-voltage connectivity.

But higher performance introduces higher verification complexity. As data rates climb and asymmetric traffic patterns become the norm, traditional compliance testing alone won't guarantee first-silicon success. IP and SoC designers need a systematic, coverage-driven verification strategy that addresses real-world corner cases, power-performance, and protocol edge conditions before tapeout.

This guide walks through the key verification challenges posed by eUSB2v2—and shows how a modern Verification IP (VIP) approach can accelerate validation, close coverage gaps, and de-risk your next embedded design.

eUSB2v2 is a performance-optimized extension of the eUSB2 native mode specification, designed to support bandwidth-intensive embedded peripherals—especially high-resolution cameras and AI inference accelerators—without requiring a full USB 3.x implementation.

Unlike USB 3.x, which delivers symmetric, high-speed bidirectional links, eUSB2v2 is purpose-built for asymmetric, directional traffic patterns common in embedded vision and sensing applications. It maintains USB 2.0 transaction semantics while significantly advancing PHY capabilities.

Core Enhancements in eUSB2v2:

• Asymmetric and symmetric high-speed modes tailored to workload-specific traffic (e.g., camera downstream, telemetry upstream)
• Higher maximum packet sizes for ISOC and BULK transfers, improving streaming efficiency
• LFSR-based scrambling/descrambling to improve signal integrity and reduce EMI
• SYNC pattern enhancements for faster link training and mode negotiation
• ISOC burst transaction support based on Bytes Per Interval (BPI) from endpoint companion descriptors
• Compliance and RxMargining capabilities for production test and yield optimization
• Configuration and operational register support for runtime tuning and debug visibility
• Allows one re-driver between host and peripheral, making it ideal for inside-the-box topologies in smartphones, tablets, automotive infotainment, and industrial edge devices.

eUSB2v2 defines three primary operating modes to match real-world traffic asymmetry:

Increased performance and protocol flexibility introduce a new class of verification challenges that go well beyond traditional USB 2.0 compliance suites:

• Mode-transition correctness across multiple speed and direction configurations
• Throughput-vs-latency tradeoffs in bursty and isochronous traffic mixes
• Timing and interpacket edge cases under reduced turnaround requirements
• Re-driver and in-box topology effects that stress signal/protocol robustness
• Power-management interactions with sustained high-bandwidth operation
• Corner-case error handling under malformed packets, retries, and recovery paths

For SoC tapeout confidence, these scenarios must be validated with measurable coverage closure—not just ad-hoc testing.

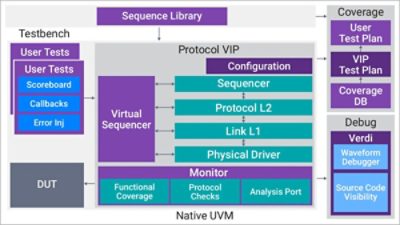

A comprehensive Verification IP (VIP) strategy is critical to managing eUSB2v2 complexity without extending project schedules. Synopsys eUSB2v2 VIP provides a production-ready, coverage-driven framework designed specifically for IP and SoC verification teams.

eUSB2v2 brings a practical bandwidth leap to embedded USB connectivity while preserving power-efficient, low-voltage operation. That combination is compelling for next-generation camera, sensing, and AI-edge pipelines—but it also raises the verification bar. With a comprehensive Synopsys USB VIP approach, engineering teams can validate high-performance embedded USB behavior earlier, close coverage faster, and reduce integration risk before tapeout.

Synopsys is partnering with early customers and collaborators to enhance the standard architecture for their next-generation designs, incorporating new features now available with the latest specifications.

Synopsys AVSBus 2.0 VIP is natively integrated with the Synopsys Verdi® Protocol Analyzer debug solution for protocol-aware, transaction-level debug. For system-level power-management scenarios that demand a faster, hardware-based pre-silicon platform, Synopsys transactors and hybrid and virtual solutions extend these use cases to the industry's fastest verification hardware, Synopsys ZeBu® emulation and Synopsys HAPS® prototyping systems.
