More Cores, Same Wall: Why the CPU Comeback Runs Through the DIMM

For years, the AI conversation had one default answer: GPU. Training, inference, everything — add more accelerators. That framing is now broadening. GPUs remain the engine for dense, high-concurrency math, and nothing about the CPU's return changes that. But as inference shifts toward agents, tool calls, and multi-step reasoning, a growing share of the work lands back on general-purpose cores. Intel has pointed to the CPU-to-GPU ratio moving from roughly 1:8 in training toward 1:1 — and as high as 4:1 in some agentic deployments. The two aren't competitors so much as a division of labor: GPUs brute-force the matrix math, CPUs run the orchestration, control flow, and I/O that modern AI actually depends on.

There's a catch that doesn't make the headlines, though: a stronger role for the CPU isn't a core-count story. It's a bandwidth story.

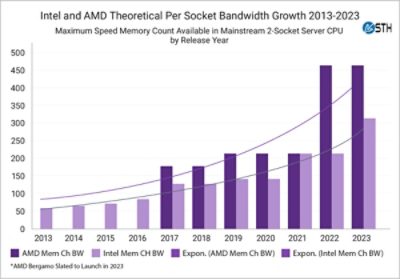

Server core counts have climbed steeply — some designs have nearly tripled their cores over the past several years — while per-core memory bandwidth has moved far more slowly. The result is a processor that can be data-starved long before it's compute-bound. Add cores past that point and you don't add useful work; you add cores waiting on memory. This is the memory wall, and in 2026 it's no longer a niche concern. It's the constraint processor vendors and memory suppliers alike are now naming out loud.

It shows up hardest exactly where the CPU is taking on more: AI inference and KV-cache reads, in-memory databases, large-scale analytics, and highly parallel server workloads. In these environments, delivered throughput is often set by the memory subsystem, not the theoretical compute of the socket.

The obvious fix — keep pushing DDR5 signaling rates — runs into real physics. Higher rates strain signal integrity, power, and channel loading, and each step gets harder. There's also a structural limit worth understanding, because it's the heart of the problem.

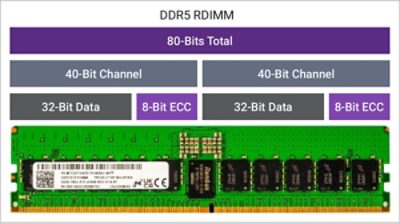

A conventional DDR5 RDIMM splits the module into two independent 40-bit sub-channels, but within each sub-channel it can access only one rank at a time. You can add ranks to grow capacity, but rank access stays serialized. In practical terms, an RDIMM can deliver up to two cache lines concurrently — one per sub-channel — and no more, regardless of how many ranks you install. As request concurrency rises, rank conflicts, refresh activity, and scheduling constraints cause throughput to saturate earlier, and latency climbs sharply as queues build. More capacity, in other words, doesn't buy more parallelism — and parallelism is exactly what a busy, many-core socket needs.

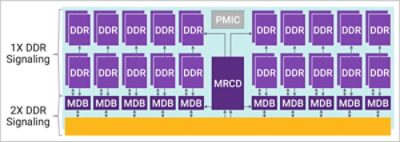

MRDIMM — Multiplexed Rank DIMM — takes a different path. Instead of chasing raw DRAM speed, it adds active buffering on the module so multiple ranks are accessed in parallel and their data is merged into a single, higher-rate stream to the host. Two components make this work: a Multiplexed Registering Clock Driver (MRCD) that distributes command, address, and clock signals in a multiplex-aware way, and Multiplex Data Buffers (MDBs) that sit on the data path, serializing and interleaving traffic between host and DRAM. The effect is SerDes-like: the host side runs at roughly twice the effective rate, while the DRAM devices keep operating within their normal limits.

Where an RDIMM tops out at two concurrent cache lines, an MRDIMM enables simultaneous access to as many as four — a direct lift in the memory-side concurrency that starved cores are waiting on. That translates to about 39% more bandwidth and up to 40% lower latency versus comparable RDIMM, all while staying drop-in compatible with existing DDR5 platforms. The roadmap is already moving too: Gen3 solutions targeting 16,000 MT/s have been announced, extending the same approach without an architectural reset.

A few practical patterns are worth calling out for system designers weighing the switch:

• The advantage grows with pressure. At light loads, a well-tuned RDIMM can hold its own; MRDIMM's benefit becomes pronounced as traffic intensity rises and the memory system is pushed toward saturation — precisely the regime that defines busy AI and HPC servers.
• Gains are broad, not workload-specific. Across a wide mix of random and sequential traffic, read/write ratios, and stream counts, MRDIMM Gen 2 delivers consistent throughput improvement rather than a single-benchmark spike.
• Rank count matters. Higher-rank MRDIMM configurations deliver more uniform gains by adding memory-side parallelism and reducing contention under load.

In short, MRDIMM widens the pipe that feeds all those cores — without asking the rest of the platform to change.

Multiplexed rank access is only as good as the controller and PHY driving it. Feeding more cores reliably at 12.8 Gbps takes memory interface IP built for this exact problem — and that's where Synopsys is differentiated:

• A complete, single-vendor solution. Synopsys delivers the DDR5 MRDIMM Gen2 PHY and Controller together, co-designed end to end rather than stitched across vendors, supporting both RDIMM and Gen2 MRDIMM in one solution at up to 12.8 Gbps.
• Built to extract concurrency, not just carry it. The controller uses phase-aware scheduling, a configurable command queue (CAM, from 64 up to 256 entries), and QoS-based prioritization to sustain throughput under mixed, highly parallel traffic — the workloads where the memory wall bites hardest.
• Engineered for signal integrity at speed. The PHY runs an 8-tap DFE receiver, per-bit read/write deskew, and PHY-independent, firmware-based training via an embedded calibration processor — the margin work that makes 12.8 Gbps dependable in production systems.
• Enterprise-grade RAS and security. Advanced ECC with scrubbing, CRC on the data and command buses, and an optional Inline Memory Encryption module protect data in use and off-chip — table stakes for server and data-center deployment.
• Silicon-proven DDR5 heritage. MRDIMM Gen2 builds on Synopsys' widely deployed DDR5 controller, PHY and verification IP, so the move to higher bandwidth rides on a mature, integration-ready foundation rather than a first-generation design.

The CPU is taking on a bigger role in the AI stack, working alongside the GPU rather than replacing it. Whether it delivers on that role depends less on how many cores you add and more on how fast you can feed them. That decision lives in the memory interface — and it's exactly where Synopsys IP is built to perform.
