Definition
A Root of Trust (RoT) is a fundamental concept in hardware and software security, acting as the initial trusted element from which all other security operations stem. In the context of modern digital systems, ranging from Internet of Things (IoT) devices to automotive ECUs and cloud infrastructure, the Root of Trust forms the secure anchor upon which critical security processes such as authentication, encryption, and secure boot rely.
At its core, the Root of Trust is typically embedded at the silicon level and serves as a set of immutable, tamper-resistant functions. These functions are responsible for establishing and maintaining the integrity and confidentiality of a system throughout its lifecycle. The Root of Trust is designed to withstand sophisticated threats and attacks, ensuring that only authorized processes and entities can interact with protected resources.
With the explosive growth of connected devices and the increasing sophistication of cyber threats, the importance of a robust Root of Trust cannot be overstated. It provides the assurance that even if vulnerabilities exist elsewhere in a system, the foundational security remains uncompromised, enabling trust at the core of digital operations.
How Does Root of Trust Work?
The Root of Trust operates by providing a secure starting point for a device’s security architecture. This secure anchor enables a range of core security functions that collectively defend the device against unauthorized access, data breaches, and tampering. Let’s explore how Root of Trust works across its key functionalities:
Secure Boot
One of the most critical roles of the Root of Trust is facilitating a secure boot process. When a device powers on, the Root of Trust verifies the integrity and authenticity of the firmware before it is executed. This ensures that only trusted software is loaded, preventing attackers from injecting malicious code during the boot sequence. The secure boot establishes a chain of trust that extends from the hardware up through the operating system and application layers.
Secure Storage
The Root of Trust provides a protected environment for storing sensitive information, such as cryptographic keys, credentials, and configuration settings. By isolating these assets from the rest of the system and incorporating tamper-resistant features, the Root of Trust defends against both physical and remote attacks. Advanced technologies like Physical Unclonable Functions (PUFs) generate unique cryptographic keys based on the inherent properties of silicon, making key extraction or cloning virtually impossible.
Secure Authentication
Authentication is another core function enabled by the Root of Trust. By verifying the identity of devices, users, and software components, the Root of Trust ensures that only trusted entities can access system resources. It also generates and manages ephemeral session keys for secure communication, protecting data in transit from eavesdropping or tampering.
Secure Update
The Root of Trust manages the secure reception and application of firmware and software updates. By verifying the authenticity and integrity of updates before installation, it prevents attackers from introducing malicious code via compromised update mechanisms. Secure update processes also include rollback protection, ensuring that outdated or vulnerable firmware versions cannot be reinstalled.
Cryptographic Acceleration
Many Root-of-Trust implementations include hardware-based cryptographic accelerators. These accelerators perform encryption, decryption, and digital signature operations far more efficiently than software alone. This not only enhances security but also improves system performance and reduces power consumption—critical factors for applications in automotive, IoT, and mobile devices.
Secure Debug
During development and troubleshooting, the Root of Trust enables secure debug mechanisms. These mechanisms restrict access to debugging features, ensuring that only authorized personnel can use them. This prevents attackers from exploiting debug interfaces to extract sensitive information or compromise the system.
By integrating these functions, the Root of Trust provides a comprehensive security foundation that addresses threats at both the hardware and software levels. Its presence throughout the device lifecycle ensures ongoing protection against evolving cyber risks.
| Function | Description |
| Secure Boot | Verifies firmware integrity and authenticity at boot to ensure only trusted software is loaded. |
| Secure Storage | Stores sensitive data like cryptographic keys in a tamper-resistant environment. |
| Secure Authentication | Verifies identities of users, devices, and software components to control access. |
| Secure Update | Ensures firmware/software updates are verified and authentic before installation. |
| Cryptographic Acceleration | Performs encryption and decryption operations efficiently using hardware accelerators. |
| Secure Debug | Restricts debug access to authorized personnel to prevent unauthorized data extraction. |
Benefits of Root of Trust
Implementing a Root of Trust delivers a multitude of security, operational, and business benefits. As cyber threats become increasingly advanced, having a reliable Root of Trust is essential for organizations seeking to protect their assets and maintain user confidence.
Key benefits include:
- Prevents Unauthorized Access: By verifying the authenticity of entities interacting with the system, the Root of Trust ensures only trusted devices and users gain access.
- Protects Sensitive Information: Cryptographic keys, credentials, and other critical data are safeguarded from exposure and tampering.
- Mitigates Intellectual Property (IP) Theft: Hardware-level protection secures proprietary designs and code, preserving the competitive edge of manufacturers and developers.
- Defends Against Firmware-Level Attacks: Secure boot processes thwart attempts to compromise devices at startup, maintaining system integrity from the outset.
- Enables Secure Updates: Ensures that only trusted and verified updates are applied, preventing attackers from exploiting update mechanisms.
- Supports Regulatory Compliance: Many industries require proof of secure device operation; Root of Trust helps meet compliance standards for data protection and privacy.
- Enhances Performance and Efficiency: Hardware-based cryptographic acceleration reduces system complexity and power consumption while delivering robust security.
- Facilitates Secure Debugging: Allows authorized troubleshooting without exposing the system to unauthorized access or information leakage.
- Future-Proofs Devices: Provides a scalable foundation for adapting to new security threats and evolving industry requirements.
The adoption of Root of Trust is particularly vital for sectors such as automotive, healthcare, financial services, and government, where the stakes for data integrity and confidentiality are exceptionally high.
Root of Trust and Synopsys
Synopsys is at the forefront of enabling secure systems with advanced Root of Trust technologies. Recognizing the critical importance of trust at the hardware level, Synopsys offers industry-leading solutions tailored to the needs of modern applications.

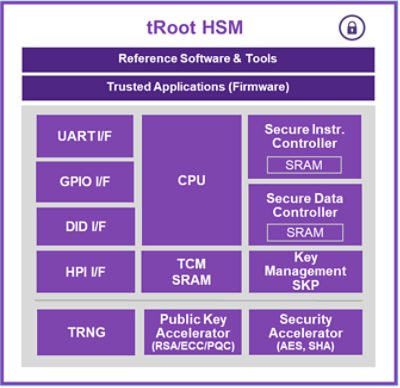

Synopsys tRoot Hardware Secure Modules (HSMs):
The tRoot™ HSMs provide a highly configurable and flexible Root of Trust solution, integrating seamlessly into a wide range of devices—from IoT endpoints to automotive controllers. These modules deliver robust security features, including secure boot, storage, authentication, and cryptographic acceleration, all anchored by a tamper-resistant hardware core.
SRAM Physical Unclonable Function (PUF):
Synopsys SRAM PUF technology leverages the inherent physical variations in silicon to generate device-specific cryptographic keys. Unlike traditional storage methods, these keys are never stored in memory, making them highly resistant to extraction and cloning. This innovation further enhances device security and trustworthiness.
By integrating solutions like tRoot and SRAM PUF, Synopsys empowers chip manufacturers and device makers to build secure products that meet the rigorous demands of today’s cyber threat landscape. These technologies enable organizations to establish a strong Root of Trust, protecting sensitive data, intellectual property, and user privacy across diverse sectors.
As the world moves toward greater connectivity and smarter systems, Synopsys continues to innovate at the intersection of hardware and software security. With a focus on trust at the core, Synopsys helps customers build resilient foundations for the future.
