Securing Camera Data: Introducing the Synopsys MIPI CSE 2.0 Security Solution

High‑performance imaging has become a cornerstone of modern electronic systems. From mobile phones to advanced driver‑assistance systems (ADAS) and autonomous driving to robotics, extended reality (xR), medical devices, and industrial automation, cameras and imaging sensors are proliferating rapidly. These systems increasingly rely on MIPI Camera Serial Interface (CSI‑2), the industry’s most widely adopted high‑speed interface for transmitting still and video data from sensors to processors. Originally developed to meet the bandwidth and power requirements of mobile imaging systems, MIPI CSI‑2 has since become the de-facto camera interface across a wide range of markets.

While mobile devices have driven CSI‑2 adoption at massive scale, automotive and embedded platforms are now rapidly expanding sensor counts and bandwidth requirements. With the growing number of sensors and imaging data becoming more safety‑critical and privacy‑sensitive, the attack surface of camera systems expands significantly. In automotive platforms alone, systems may integrate dozens of cameras, along with radar and LiDAR sensors, connected through bridges, aggregators, and long‑reach links. Ensuring that sensor data remains authentic, untampered, and protected from unauthorized access has become essential.

As these security requirements have become more pronounced across mobile, automotive, and embedded imaging systems, the industry has moved toward standardized, interoperable approaches rather than proprietary solutions. To address this need, the MIPI Alliance has defined a comprehensive Camera Security Framework that extends the CSI‑2 ecosystem with clearly‑described security services, system‑level management, and interoperability profiles.

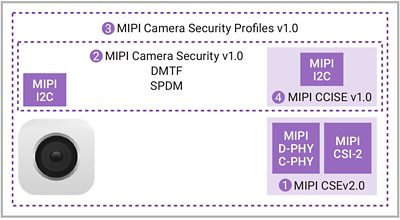

The MIPI Camera Security Framework is a specification ecosystem developed to enable end‑to‑end security for camera systems based on MIPI interfaces. Within this framework, multiple specifications work together to address different aspects of camera and imaging system security:

1. MIPI CSE (Camera Service Extensions) v2.0
   Defines protocol-layer security services for image data transported over MIPI CSI‑2, including data integrity protection and optional encryption. CSE 2.0 enables protection of camera streams as they move across sensors, bridges, aggregators, and processors, supporting both functional safety and cybersecurity requirements.
2. MIPI Camera Security v1.0
   Provides system‑level security management for camera subsystems. It enables component authentication, attestation, and the establishment of secure sessions between elements such as sensors, hosts, and intermediate devices.
3. MIPI Camera Security Profiles v1.0
   Defines standardized security profiles that ensure interoperability across implementations, including consistent use of authentication mechanisms and cryptographic capabilities within the Camera Security Framework.
4. MIPI CCISE (Command and Control Interface Service Extensions) v1.0
   Extends security services to the camera command and control plane, enabling integrity protection and optional encryption of the MIPI CCI interface, typically based on I2C.

The Synopsys MIPI CSE 2.0 Security Solution is designed to help SoC designers efficiently implement the security services defined by the MIPI CSE 2.0 specification. The solution includes seamlessly integrated Synopsys CSE 2.0 Security Module with CSI‑2 Host Controller and MIPI C/D-PHY options, enabling a plug‑and‑play approach to securing camera and sensor data.

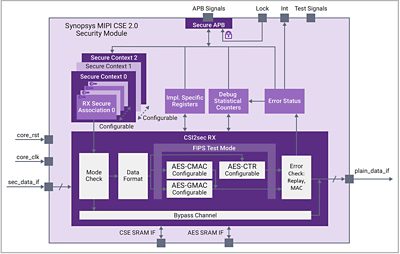

At its core, the security module delivers high‑performance, inline protection for CSI‑2 traffic without compromising bandwidth or latency. It supports the full CSI‑2 interface performance envelope, for C‑PHY mode and for D‑PHY mode, ensuring that security does not become a bottleneck as sensor resolutions and frame rates continue to rise.

Modern imaging systems rarely operate with a single camera or sensor. To address this reality, the Synopsys MIPI CSE 2.0 Security Module is architected for scalability and flexibility.

The solution supports:

• Multiple security contexts (up to 16): Enables several independent security configurations to operate in parallel, each with its own cryptographic settings and policies. This allows designers to isolate security domains, e.g., per camera or sensor group, while supporting scalable multi‑stream architectures within a single device.
• Multiple enhanced virtual channels (up to 32 eVCs): Provides fine‑grained, stream‑level security by allowing each enhanced virtual channel to be independently associated with a specific security context. This enables different sensors or data streams sharing a CSI‑2 link to operate with distinct integrity or encryption modes.
• Multiple keys and security associations within a single SoC: Supports concurrent use of multiple cryptographic keys and security associations, enabling key isolation, rotation, and lifecycle management across sensors and use cases while meeting automotive and security certification requirements.

Security policies can be applied per sensor or per virtual channel, enabling fine‑grained control over how different data streams are protected. Designers can also perform on‑the‑fly security context updates, allowing systems to adapt dynamically to changing operational or threat conditions.

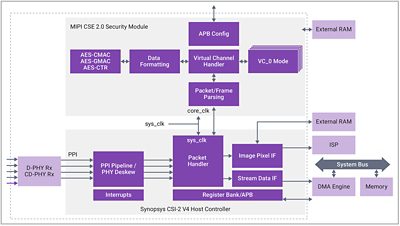

The Synopsys MIPI CSI-2 Controllers support the latest generation of the MIPI standard offering high-throughput connectivity to C-PHYs and D-PHYs with aggregation. The IPs offer specialized interfaces to popular ISPs and DMAs for simplified SoC design. With native support for pixel management such as filtering pixel data per virtual channel, flexible number of pixels per cycle and optional interface widths or offering a streaming interface, the Synopsys CSI-2 controller offers myriads of configurations suitable to automotive, mobile, consumer and industrial designs. Advanced features such as CSE 2.0 support add standardized Functional Safety mechanisms alongside Security capabilities offered by the CSE 2.0 Security Module. Smart Region of Interest (SRoI) and Latency Reduction and Transport Efficiency (LRTE) features allow maximum bandwidth efficiency to SoC designs.

Synopsys combines the CSE 2.0 ingredients, namely, Security Module, CSI-2 Controller and PHY options to offer a complete solution allowing for a seamless experience for the customer to kickstart their MIPI camera interface experience.

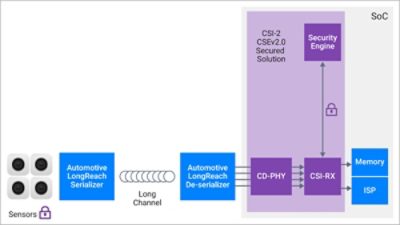

In the automotive space, the Synopsys CSE 2.0 Security Solution is purpose-built to connect multi-modal sensors such as cameras, radars, LiDARs over long bridges to ISPs or memories on the ADAS SoC without any glue-logic ensuring functional safety and security.
