Designing Edge AI SoCs at Near-Threshold: Why Foundation IP Can Help You Break Down the Power Wall

Lowering operating voltage is key to SoC power optimization. In advanced FinFET processes at ~0.4–0.5V, it can also start to become a design risk. As Edge AI pushes inference closer to endpoints, Edge-AI SoCs must deliver real-time performance within tight energy and thermal limits. Traditional voltage scaling is no longer sufficient.

SoC designs are shifting towards much more extensive use of near-threshold operation to achieve step-function improvements in performance per watt. But this shift fundamentally changes how chips behave: delays increase non-linearly, variability grows significantly, and underpinning predictable operation becomes a critical enabler to minimizing power.

Design success in this operating regime depends heavily on the underlying quality, modeling accuracy, and integration of Foundation IP with EDA flows and silicon validation. Embedded memories, logic libraries, and I/Os must be selected carefully, and any targeted optimizations must be carried out and fully validated early in the design cycle—not treated as a possible downstream option.

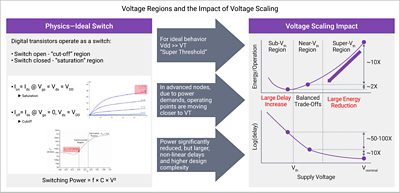

As shown in Figure 1, reducing voltage lowers energy per operation, but comes with significant trade-offs: delay grows rapidly, variability increases, and noise margins shrink.

In this regime:

• Timing paths become highly sensitive to small voltage variations
• IR drop and local voltage droop become first-order effects
• Guard-banding becomes less effective
• Nominal-voltage models no longer predict behavior accurately

Voltage scaling is no longer an isolated optimization—it introduces tightly coupled challenges across the entire design stack.

Meeting power targets at ultra-low voltage is not sufficient; designs must achieve this predictably and without introducing additional silicon risk. This is where Foundation IP moves from an incidental enabler to a critical factor in design success. The quality of logic libraries, memory compilers, and I/Os can directly determine the robustness of design closure and silicon outcomes.

A unified, silicon-proven Foundation IP platform—tightly coupled with EDA flows, built with the most accurate modeling and characterization methodologies and meticulously validated on silicon—provides the accuracy and consistency needed to enable PPA winning designs at ultra-low voltages, with reliable behavior from early design through signoff.

Memory is a dominant contributor to area and power—and often determines the system's minimum operating voltage (Vmin) if not architecturally decoupled. This is addressed through flexible architectures:

• Single-rail memories with silicon-validated assist features support operation down to ~600 mV Vmin, enabling direct V² energy reduction without architectural disruption

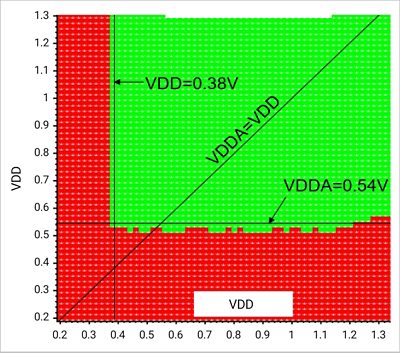

• Dual-rail memories decouple logic and memory voltages, allowing deeper scaling of compute blocks. As shown in Figure 2, this approach has been validated at ISSCC 2025 with a 38 Mb/mm² dual-rail SRAM at 380/540 mV in 3nm FinFET
• Ultra-low-power register files support localized data storage in compute-intensive regions

Different AI subsystems require different memory strategies: MAC tiles benefit from small, distributed SRAM blocks; activation units benefit from ULP RFs with wide datapath; and shared system buffers benefit from high-bandwidth AXI interfaces.

Logic libraries must be engineered specifically with low-voltage operation in mind:

• Advanced characterization, such as moment-based LVF timing and noise models across wide bands of PVT coverage
• Delay and slew models that capture near-threshold non-linear sensitivities
• Enhanced verification checks—including MIS effects, pulse-width integrity, skew interactions, and mixed-device behavior—to address reduced noise margins
• Targeted silicon validation, including extended timing and functional sweeps, to ensure model accuracy

This modeling accuracy is essential to avoid unexpected surprises during low voltage signoff and prevent timing failures on silicon.

In many designs, I/O domains define system-level Vmin. If I/O cannot operate reliably at reduced voltages, it blocks near-threshold logic benefits regardless of how well the core is optimized.

The portfolio spans control interfaces (GPIO, I3C/I2C, SWI3S), high-speed data links (LVDS, RGMII), clock and reference inputs, storage interfaces (SD/eMMC), test I/O, and 2.5D/3D integration I/O for chiplet-based systems—each validated for consistent operation across varying supply levels.

Achieving predictable, optimized operation at ~0.4–0.5V requires tight alignment across Foundation IP, EDA tools, modeling, and silicon validation.

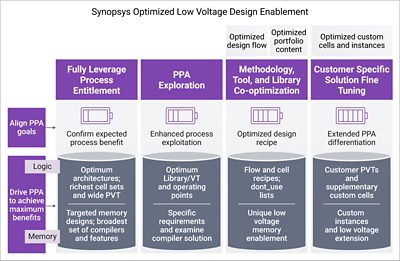

As shown in Figure 3, optimal low-voltage design depends on an iterative, closed-loop enablement process:

• Early exploration of PPA trade-offs, along with specific voltage targeting
• Selection of right IP architectures, technology options, and configurations, maybe with specific cell tuning
• Flow and signoff refinement targeted for low-voltage conditions
• Feedback from silicon validation to continually improve accuracy and raise confidence

Synopsys Application Engineers bridge the gap between IP/EDA R&D experts and SoC designers during the customer design engagement, ensuring that the features are fully exploited and technologies are optimally deployed. The co-optimization of tools and IP keeps device physics, modeling assumptions, and silicon outcomes tightly coupled—transforming near-threshold design into a low risk, production-ready solution.

A power sensitive AI networking SoC targeting high-volume on an advanced technology process node required expert enablement for near-threshold design.

The design needed to support extremely-low operating voltages while being executed on a highly compressed schedule. The Foundation IP solution included specially tuned low-voltage logic cells, custom level shifters and a custom dual-rail memory compiler, with a specifically targeted set of PVT corners selected to achieve the optimum design trade-offs for the best power efficiency through near-threshold signoff.

The results:

• ~20% reduction in power consumption
• Full achievement of performance and area targets
• No schedule impact
• Reduced validation complexity while avoiding re-spins

The key outcome: predictable execution without schedule or silicon risk.

Synopsys provides comprehensive documentation, design reviews, PPA tuning sessions, and direct application engineering engagement. DTCO and PPA exploration help customers select optimal IP configurations, while custom characterization services extend the platform for specialized requirements.

As Edge AI workloads proliferate, supporting near-threshold operation is becoming a central requirement to enable power optimized SoC design. Synopsys Foundation IP solutions—logic, memory, and I/O—deliver the architectural rigor, modeling accuracy, and rigorous silicon validation this regime demands. A broad portfolio of IP implemented with design consistency and supporting wide voltage ranges simplifies IP reuse, enabling easier product migration, across process generations and foundries.

Engage Synopsys early to define optimal voltage targets, select the right Foundation IP configurations, and establish a low-voltage-ready methodology tailored to your product goals. The power wall is real—but it's not insurmountable.

To learn more, read the white paper “Beating the Edge AI Power Wall with Low Voltage Foundation IP.” To explore the full Foundation IP offering, visit our web page.
