Synopsys' power- and area-optimized HDMI 2.1 IP solutions encompass a suite of configurable digital controllers, High-Bandwidth Digital Content Protection (HDCP) embedded security modules (ESMs), high-speed mixed-signal PHYs, PLL, verification IP, IP Prototyping Kits, Linux software drivers, and IP subsystems. The highly efficient Synopsys HDCP 2.3 on HDMI ESMs are designed to protect premium audio-visual content against unauthorized copying, interception, and tampering while meeting stringent security specification requirements.
Having all necessary design blocks for the HDMI subsystem, the IP solution enables system-on-chip (SoC) designers to lower integration risk and accelerate time-to-market.
Contact us for more information and to discuss your HDMI 2.1 TX IP needs.

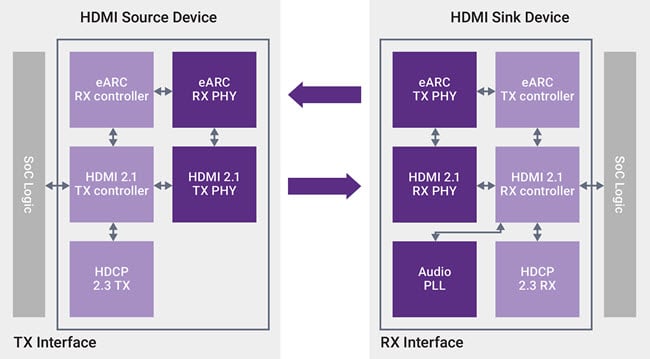

Figure 1: Synopsys HDMI 2.1 TX IP Block Diagram
Highlights & Key Features
- HDMI 2.1 TX IP solution includes PHYs, controllers, HDCP embedded security modules, and verification IP
- Compliant with the HDMI 2.1, 2.0, 1.4, and HDCP 2.3, 1.4 specifications
- Support for key HDMI 2.1 features such as fixed-rate link capable of 48Gbps aggregate bandwidth, enhanced
- Metadata packets including dynamic HDR, eARC, auto low-latency mode, and variable refresh rate
- Optimized for low power and small area
- Timing hardened blocks simplify placement and design closure
- Configurable controller architecture optimized for power, performance, and area
