ModeSYS Encircled Flux (EF) Simulation

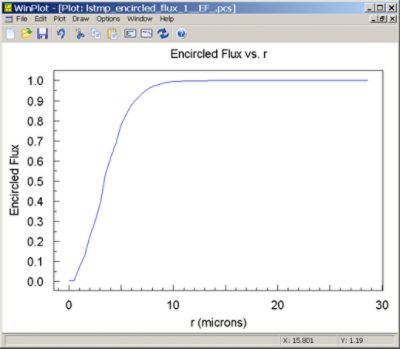

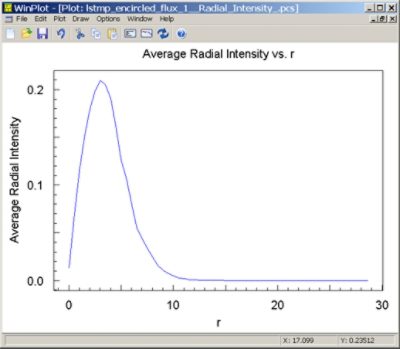

The encircled flux and radial intensity plots corresponding to above layout are shown below:
The encircled flux plot above correctly shows that the integrated power at the fiber axis (r = 0) is zero and that it rises quickly, peaking at about 8 microns. Because the encircled flux is normalized by its maximum value, it ranges from 0 to 1.
