Verification IP for MIPI SoundWire

Specifications: SoundWire version v1.2​

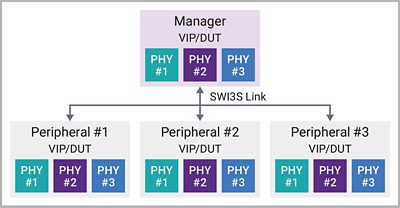

DUT Types/Topology: Master, Slave​

Key VIP Features​

• Serial Signal Interface, Multi-Lane support​

• Passive Monitors​

Debug and Analysis​

• Verdi based protocol and performance analysis​

• Transaction log​, Verbosity Messages​, Debug ports​

Key Protocol Features​

• Bank switching, Synchronization, Enumeration​

• All types of resets, interrupts, test data, payload modes​

• High-PHY, clock stop mode, dynamic number of slaves and clock frequency change​

• All Frame Shapes and timing parameters​

• Customization of Data Port parameters​

• BRA, SDCA, Commit and Atomic access mechanism​

Test Suites / Groups Features ​

• Includes AHB register interface​

• Customizable FIFO interface & configurable numbers of Slaves​

• Enables DUT register programming through customizable register interface​
