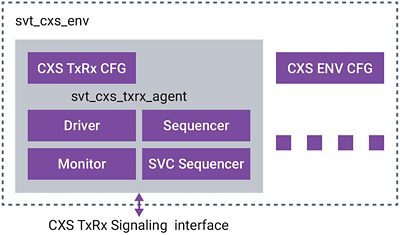

Architecture and Key Features
Specifications: CXS D,CXS C(Lite), B, A
DUT Types/Topology: VIP can be configured as TX only, RX only, or both
Key VIP Features
- Configurable number of CXS TX RX Agents under SVT CXS Env
- Callback, functional coverage and protocol checks
- Error injection support for specific scenarios
- Delay support on CXS interface signals
- Supports both active and passive modes
Debug and Analysis
- Debug signals at VIP interface
- Protocol checks in active and passive mode
- Verbosity controlled log file
Key Protocol Features
- Support for CXS Flow Control
- CXS Link Activation Deactivation Support
- Support for all CXSDATAFLITWIDTH and CXSMAXPKTPERFLIT configurations
- Supports different max credits for Rx and Tx paths of the VIP
- Deactivate hint Support
- Support larger packets spanning multiple flits
- Support for continues data mode
- Support for odd byte parity
