Simpleware Physics Modules

Absolute permeability calculation in Simpleware FLOW

Simpleware SOLID, FLOW and LAPLACE

Simpleware SOLID, FLOW and LAPLACE calculate effective material properties from image data using Finite Element-based homogenization techniques. Quick-semi-analytical estimates or simulations in a built-in FE solver can be used to compute properties for samples (CT, micro-CT, FIB-SEM...). Calculate effective linear elastic properties in SOLID, absolute permeability in FLOW and electrical/thermal/molecular properties in LAPLACE. Choose from a range of boundary conditions and visualize and export your results.
Get Trial
Contact Us

Why use the Simpleware Physics Modules?

SOLID, FLOW and LAPLACE provide a fast and reliable solution for quantifying effective material properties, whether used as individual modules or as a bundle.

Thermal conductivity calculation in Simpleware LAPLACE

  • Easy-to-use: Rapidly calculate effective properties within the core Simpleware ScanIP environment.
  • Automated, robust, fast: Choice of predefined settings simplify analysis of complex materials.
  • Accurate and reliable: Innovative tools provided ensure accuracy of results.
  • Flexible: Calculated effective properties can be displayed in multiple ways.
  • Compatible: Options to export data to all leading FE/CFD solvers.
  • Fully supported: All licences come with full support from our expert team of application engineers.

Try Simpleware ScanIP with the Physics Modules

Sign up for a fully-supported trial version of the complete Simpleware software suite.

Get Trial

Calculate Effective Material Properties from 3D Images

Simpleware SOLID

  • Calculate effective stiffness tensor/elastic moduli
  • Full simulations with built-in FE solver
  • Model multiphase materials
  • Quick semi-analytical estimates
  • Visualize deformations, stress and strain
  • Automatic calculation of best-fit isotropic and orthotropic approximations to calculated effective tensors
Permeability through porous media in Simpleware FLOW
Displacement visualization in Simpleware SOLID

Simpleware FLOW

  • Calculate absolute permeability of samples of porous material
  • Full simulations with built-in Stokes solver
  • Visualize velocities and pressures
  • Automatic calculation of best-fit isotropic and uniaxial approximations

Simpleware LAPLACE

  • Calculate effective electrical conductivity and permittivity
  • Calculate thermal conductivity
  • Calculate molecular diffusivity
  • Full simulations with built-in FE solver
  • Quick semi-analytical estimates
  • Model multiphase materials
  • Visualize fields
  • Automatic calculation of best-fit isotropic and uniaxial approximations

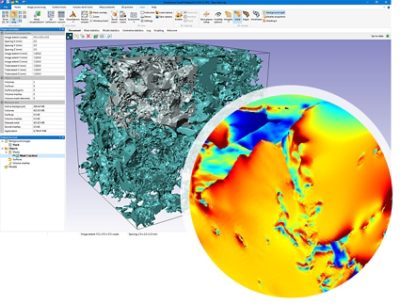

Stiffness tensor and elastic moduli calculation in Simpleware SOLID

Compare Features of the Physics Modules



Feature





Simpleware SOLID Module





Simpleware FLOW Module





Simpleware LAPLACE Module



Generate High Quality Volume Meshes (Hex/Tet or All Tet)



✔





✔





✔



Automated Gray Level based Material Property Assignment



✔







Calculate Effective Elastic Properties



✔







Calculate Absolute Permeability





✔





Calculate Effective Thermal and Electric Properties







✔



Visualize FE Simulation Results



✔





✔





✔



All the Tools and Features in Simpleware Physics Modules

The Simpleware Physics Modules provide extensive features for calculating effective material properties. Download the Simpleware Physics modules technical datasheet for a list of all features available in the latest release.

Download Datasheet

FAQs

1. Are the Physics modules full FE solvers?

These modules are used FE-based homogenization methods to calculate effective properties. The solvers are limited to these predetermined calculations.

2. Can I use these Physics modules on multi-part models?

You can use Simpleware SOLID and Simpleware LAPLACE to calculate effective properties for multi-part models with different material properties.

3. Can I export the calculated tensors for use in other FE packages?

Yes, you can export the effective property tensors in *.txt format and import these into a range of full FE packages.

4. Can I export the fields and the colour field plots?

Yes, you can export the fields *.vtk format and the color field plots in a range of image formats respectively.

Any Questions?

Do you have any questions about Simpleware software or need additional information?

Contact Us3D Image Processing Solutions
