Quick Tip: How to measure effective modal bandwidth of a multimode fiber in ModeSYS

Let’s say you have a multimode fiber (MMF) and you wish to measure its effective modal bandwidth (EMB); or you know the EMB and want to model a MMF that provides the desired EMB. This quick tip article shows you how to accomplish these objectives in ModeSYS.

The power-law parameter α (alpha) is the one to be optimized to provide the required modal bandwidth of the fiber. At α = 2, we have an ideal parabolic profile with maximum modal bandwidth.

To find out the value of parameter alpha, a simple topology for modal bandwidth measurement can be used. Here’s what the layout looks like in ModeSYS:

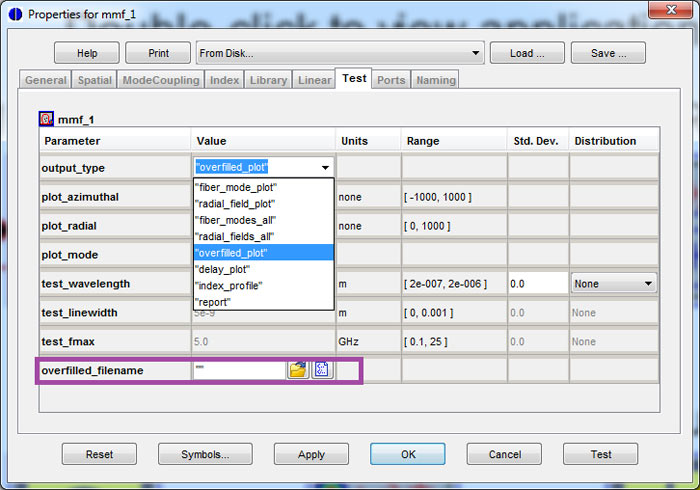

The layout consists of a short pulse source (mode-locked laser), a fiber, a receiver, and spectrum and transfer function analyzers. A single short pulse (50 ps) launched into the fiber will provide its impulse response, and the Fourier transform will give us the corresponding frequency response. Also, the source should excite all the modes in the fiber; this is called the overfilled launch. The Test tab in the MMF’s parameter window lets you select and save the overfilled launch data file:

Click on the image for a larger image

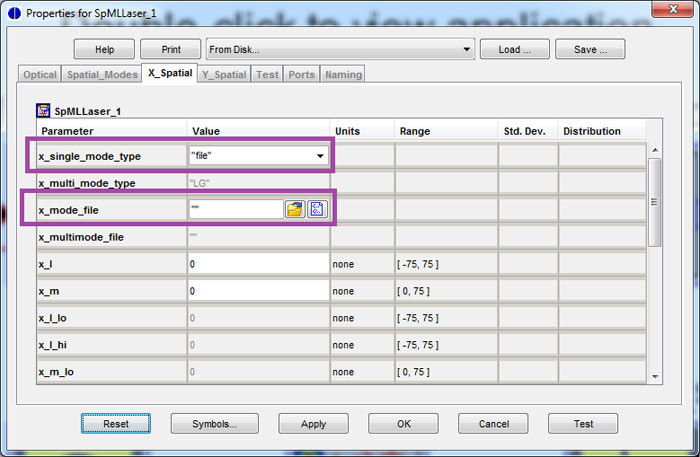

After you save the overfilled launch data to a file, the file can then be used as the spatial launch mode in the light source (mode-locked laser model):

Click on the image for a larger image

Let’s say that the target modal bandwidth is 160 MHz x km at a distance of 220 meters. The 3-dB bandwidth of the frequency response should be 727 MHz. By optimizing the parameter alpha and maintaining the laser output field satisfying the fiber overfilled launch condition, we found out (trial-and-error or a scan over alpha – whatever works for you!) that at alpha = 2.112, we achieve the target bandwidth. The figure below shows a plot of frequency response from the Transfer Function Analyzer.

Transfer Function Analyzer

We hope you found this tip helpful. If you have any questions, please contact us at
